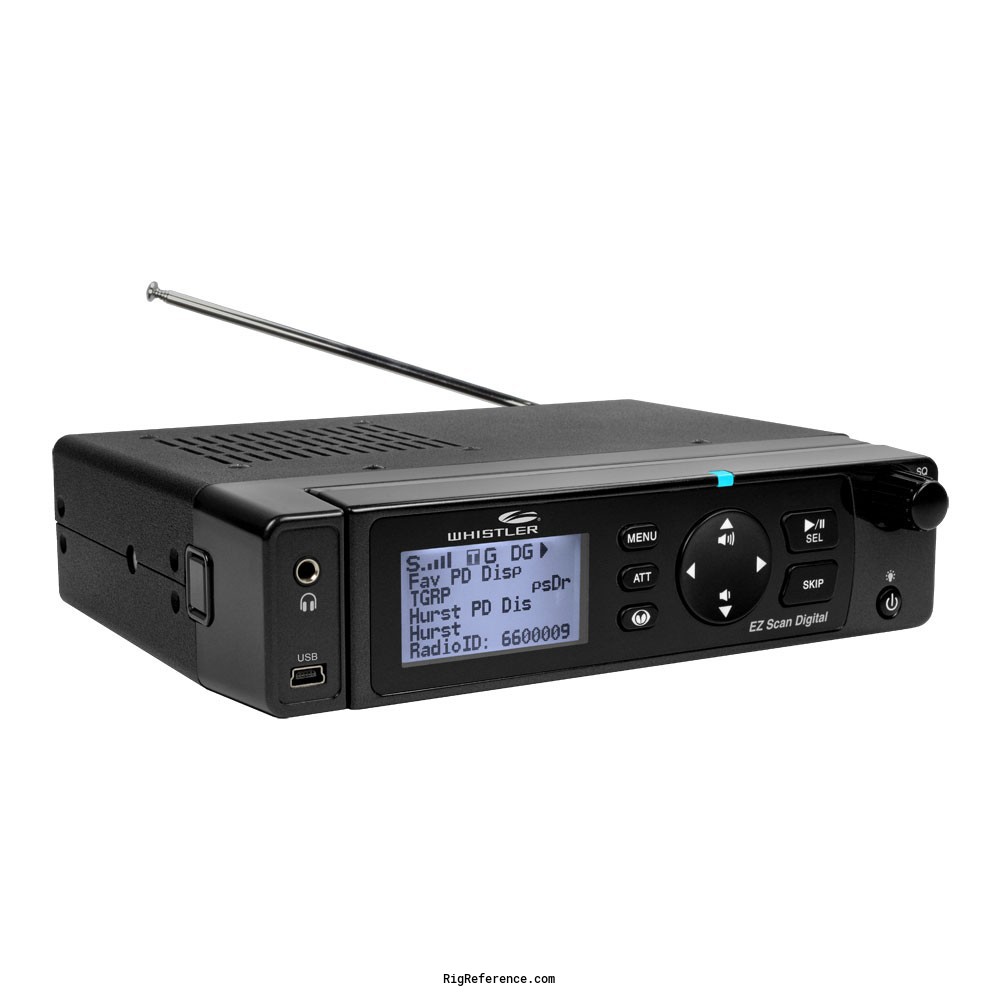

Whistler WS1095 DIGITAL TRUNKING DESKTOP/MOBILE EZ DIGITAL SCANNER

 (0.0/5)  Add a story   View all stories (0)   Add to my shack



Login or Register to upload images

Frequency range

RX-range
25-54 / 108-174 / 216-512 / 764-960 / 1240-1300 MHz
TX-range
-
HAM bands
6m  2m  70cm
Stability
-
Tuning steps
3.125 / 5 / 6.25 / 7.5 / 8.33 / 12.5 / 25 kHz
Filters
-

Receiver

Modulations
AM   FM   W-FM   P25
Sensitivity
-
Selectivity
-
Receiver system
Triple conversion superheterodyne
IF-frequencies
1st: 380.8 MHz
2nd: 21.4 MHz
3rd: 455 kHz
Image rejection
-
Audio output
500 mW

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
12-16 V DC
Current drain RX
-
TX
-

Physical

Dimensions (w×h×d)
180 × 45 × 135 mm (7.09 × 1.77 × 5.31 in)
Weight
950 gr (2.1 lbs)
Form factor
Mobile
Manufactured
Between 2014 and 201x in USA
MPN

Other features

Memories
1800 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Trunking: Motorola, LTR, EDACS
Spectrum sweeper
Weather channels
Object oriented memory
200 scanlists
Accessories
-

Manuals, diagrams and brochures

Whistler WS-1095 / WS-1098 User Guide submitted by RigReference

Upload relevant documents

Show other documents.
