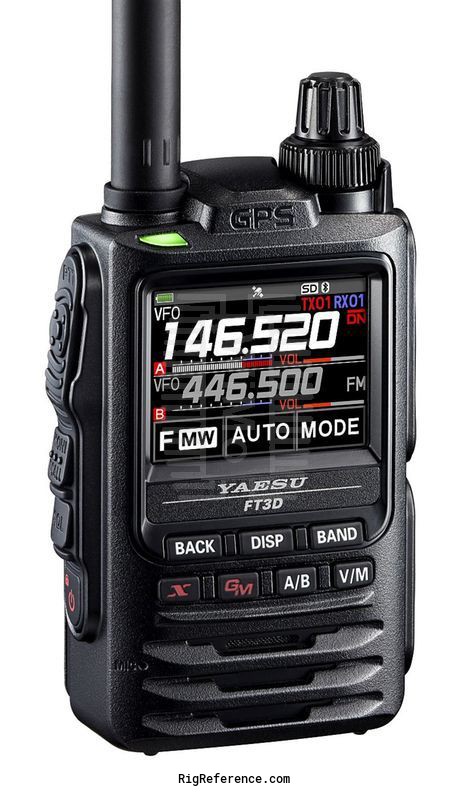

Yaesu FT-3DE

Handheld Amateur Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Yaesu FT-3DE rigs and spare parts on eBay Find the Yaesu FT-3DE on Amazon
We receive a small fee when you buy through these links, thank you!

European version of the Yaesu FT-3DR.

Frequency range

RX-range
0.5-1000 MHz
TX-range
144-146 / 430-440 MHz (Europe)
HAM bands
2m  70cm
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   FM   N-FM   W-FM   C4FM
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
700 mW

Transmitter

Modulations
FM   N-FM   C4FM
RF-Output
5 W max

Connections

Antenna
SMA
Impedance
50Ω

Electrical

Power requirements
7.2 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
62 × 100 × 33 mm (2.44 × 3.94 × 1.30 in)
Weight
282 gr (10.0 oz)
Form factor
Handheld
Manufactured
Between 2019 and 202x
MPN
YAESU-FT-000003DE

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
Built-in bluetooth and GPS
APRS 1200/9600bps modem
Voice recorder
Micro SD card slot
Twin RX (V+V/V+U/U+U)
Band scope
320×240 dot matrix full color TFT touch screen
Wires-X
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Yaesu FT-3DE user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Yaesu FT-3DE. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FT-3DE is around:

  • EUR 388.00
  • USD 418.00
Year Historic price Condition Submitted by
2019 EUR 389.00 New / Mint RigReference
2019 USD 419.00 New / Mint RigReference
2019 USD 399.00 New / Mint RigReference
