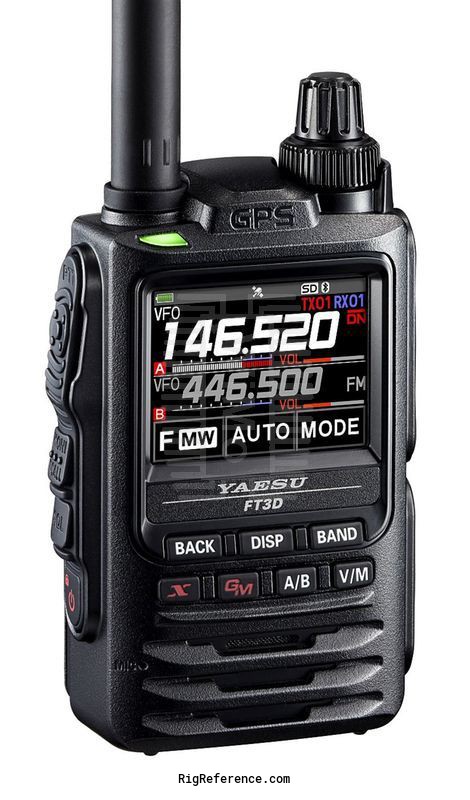

Yaesu FT-3DR

General characteristics

HAM bands

2m  70cm

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.5-1000 MHz (Cellular blocked in the US)

Modulations

AM   FM   N-FM   W-FM   C4FM

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

700 mW

Transmitter

TX-range

144-148 / 430-450 MHz (USA)

Modulations

FM   N-FM   C4FM

RF-output

5 W max

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.2 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

62 × 100 × 33 mm (2.44 × 3.94 × 1.30 in)

Weight

282 gr (10.0 oz)

Form factor

Handheld

Manufactured

Between 2019 and 202x

Other features

Usage

Amateur / Ham radio operators

Features + options

Built-in bluetooth and GPS
APRS 1200/9600bps modem
Voice recorder
Micro SD card slot
Twin RX (V+V/V+U/U+U)
Band scope
320×240 dot matrix full color TFT touch screen
Wires-X

Accessories

-

RigReference ID

6440

MPN

YAESU-FT-000003DR

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FT-3DR. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Yaesu FT-3DR in Good condition is around:

• USD 301 ~ USD 369
