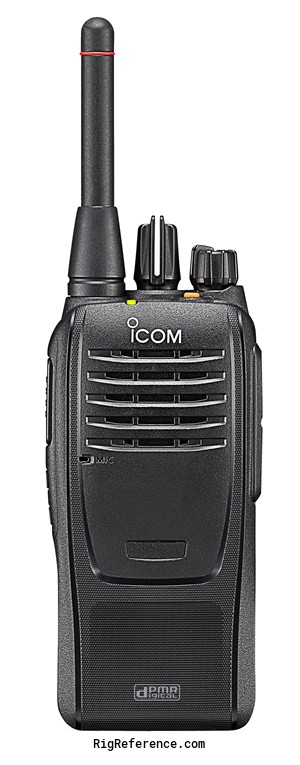

The IC-F29DR2 is available with 32 digital channels featuring 16 new PMR446 digital channels utilising 6.25 kHz narrow channel spacing as well as 16 analogue channels. The IC-F29DR2 can be used in both digital (32 ch) and analogue (16 ch) mode at the same time and can scan both zones at once.

General characteristics

HAM bands
None
Frequency stability
?
Tuning steps
6.25 kHz
Memories
32 channels in 2 bank(s)

Receiver

RX-range
446.003125-446.196875 MHz
Modulations
FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
800 mW

Transmitter

TX-range
446.003125-446.196875 MHz
Modulations
FM
RF-output
500 mW

Connections

Antenna
SMA
Impedance
50Ω
Other
-

Electrical

Power requirements
7.2 V DC
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
52 × 186 × 30 mm (2.05 × 7.32 × 1.18 in)
Weight
270 gr (9.5 oz)
Form factor
Handheld
Manufactured
Between 2018 and 202x in Japan

Other features

Usage
Private Mobile Radio, 446 MHz
Features + options
• Up to 26 hours of long lasting battery life
• Channel Set Mode
• Power ON scan
• Tone scan (analogue)
• Nuisance delete
• Answer back call (analogue)
• LED light indicator
• Status Call (RX only)
• PC programmable
• AMBE+2™ dPMR standard vocoder
• IP67 Waterproofing and Dust-tight Protection
Accessories
HS-94LWP or HS-95LWP hands-free headsets
RigReference ID
6521
MPN
ICOM-IC-F000029DR2
