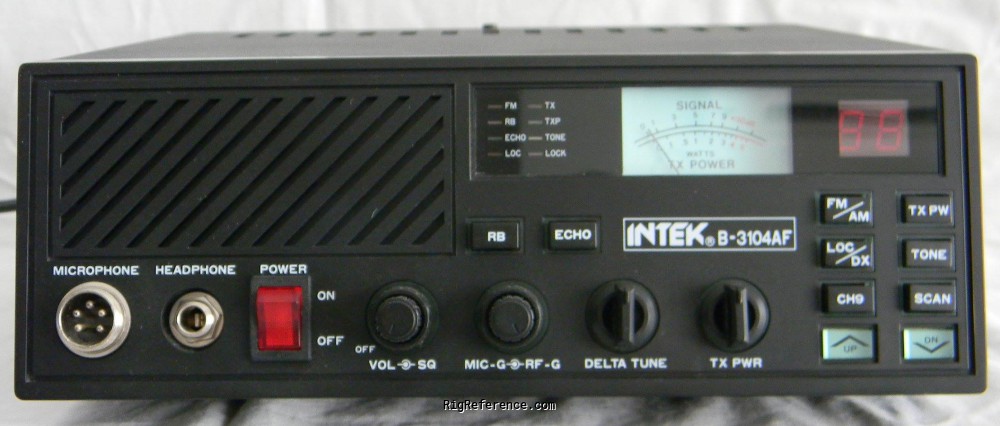

Also sold as the Team Euro 3004F.

General characteristics

HAM bands
11m (CB)
Frequency stability
?
Tuning steps
?
Memories
40 channels in 1 bank(s)

Receiver

RX-range
26.965-27.405 MHz
Modulations
AM   FM
Sensitivity
AM: < 1 µV (10 dB S/N)
FM: < 1 µV (10 dB S/N)
Selectivity
7 kHz @ -6 dB / 10 kHz @ -60 dB
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.695 MHz
2nd: 455 kHz
Image rejection
80 dB
Audio output
4 W max

Transmitter

TX-range
26.965-27.405 MHz
Modulations
AM   FM
RF-output
4 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
Mains / 12 V DC
Current drain RX
1.1 A
TX
1.5 A

Physical

Dimensions (w×h×d)
210 × 90 × 240 mm (8.27 × 3.54 × 9.45 in)
Weight
3.00 kg (6.6 lbs)
Form factor
Base Station
Manufactured
Between 19xx and 19xx

Other features

Usage
Citizen Band (27Mc)
Features + options
-
Accessories
-
RigReference ID
6550
MPN
INTEK-B-003104AF

Manuals, diagrams and brochures

Intek B-3104 AF diagrams (Italian) PDF - 832.2 kB, submitted by Gerd
