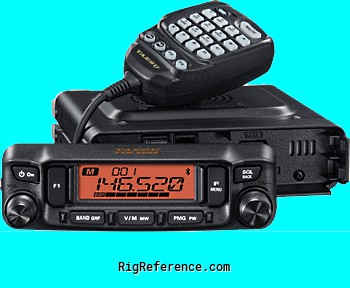

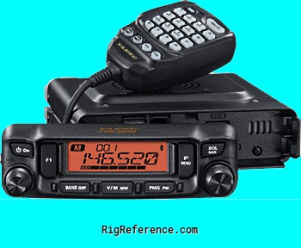

US version of the Yaesu FTM-6000E.

General characteristics

HAM bands
2m  70cm
Frequency stability
±2.5 p.p.m. @ -20 to +60°C (-4 to 140°F)
Tuning steps
5 / 6.25 / 8.33 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 kHz
Memories
999 channels in 1 bank(s)

Receiver

RX-range
108-1000 MHz (Cellular blocked in the US)
Modulations
AM   FM   N-FM
Sensitivity
AM (10 dB S/N)
108-137 MHz: 0.8 µV
300-336 MHz: 0.8 µV
N-FM (12 dB SINAD)
137-150 MHz: 0.2 µV
150-174 MHz: 0.25 µV
174-222 MHz: 0.3 µV
222-300 MHz: 0.25 µV
336-420 MHz: 0.25 µV
420-520 MHz: 0.2 µV
800-900 MHz: 0.4 µV
900-1000 MHz: 0.8 µV
Selectivity
12 kHz (-6 dB)
30 kHz (-60 dB)
Filters
?
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 58.05 MHz
2nd: 450 kHz
Image rejection
?
Audio output
3 W at 10% distortion / 8 ohm

Transmitter

TX-range
144-148 / 430-450 MHz
Modulations
FM   N-FM
RF-output
50 / 25 / 5 W

Connections

Antenna
SO-239
Impedance
50Ω
Other
-

Electrical

Power requirements
13.8 V DC
Current drain RX
0.5 A
TX
10 A max

Physical

Dimensions (w×h×d)
140 × 42 × 168 mm (5.51 × 1.65 × 6.61 in) Controller + radio unit
Weight
1.10 kg (2.4 lbs)
Form factor
Mobile
Manufactured
Between 2022 and 202x

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6614
MPN
YAESU-FTM-006000R

Manuals, diagrams and brochures

Yaesu FTM-6000R E Operation Manual PDF - 5.83 MB, submitted by Pancho Cheja

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yaesu FTM-6000R. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yaesu FTM-6000R is around:

  • USD 318.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2022 USD 319.95 New / Mint Pancho Cheja
