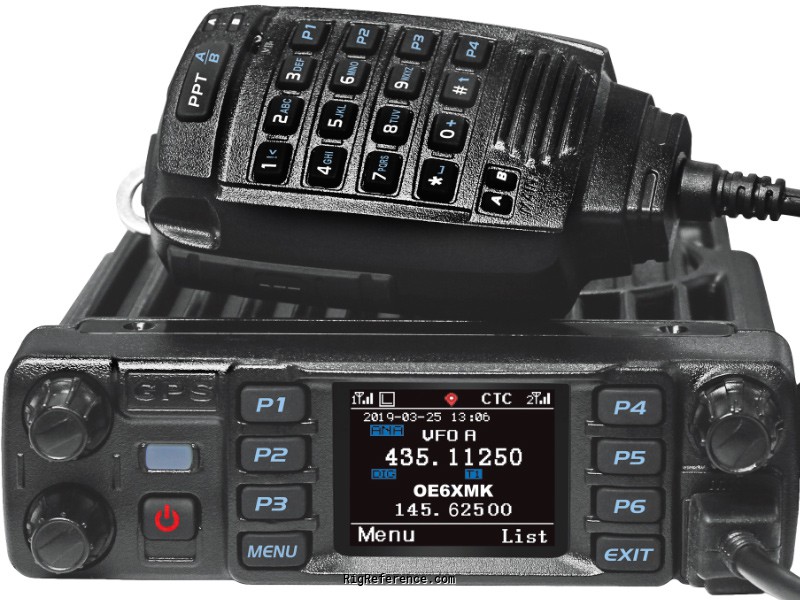

Anytone AT-D578UV

Mobile Amateur Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Anytone AT-D578UV rigs and spare parts on eBay Find the Anytone AT-D578UV on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
87.5-108 / 136-174 / 400-480 MHz
TX-range
144-146 / 430-440 MHz (Europe)
HAM bands
2m  70cm
Stability
± 2.5 p.p.m.
Tuning steps
5 / 6.25 kHz
Filters
?

Receiver

Modulations
FM   N-FM   W-FM   DMR
Sensitivity
Analog (12 dB SINAD)
≤ 0.25 µV (Wide Band)
≤ 0.35 µV (Narrow Band)
Digital
0.3 µV / -117.4 dBm (BER 5%), 0.7uV/-110dBm (BER 1%)
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
2 W

Transmitter

Modulations
FM   N-FM   DMR
RF-Output
5 / 10 / 25 / 50 W (UHF: 45 W)

Connections

Antenna
SO-239
Impedance
50Ω

Electrical

Power requirements
13.8 V DC ±20%
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Mobile
Manufactured
Between 2019 and 202x in China
MPN
ANYTONE-AT-D000578UV

Other features

Memories
4000 channels in 250 bank(s)
Usage
Amateur / Ham radio operators
Features + options
1.77" color LCD. CTCSS/PL and DCS. DTMF. 2-tone/5-tone selcall.
SMS via keyboard. APRS (DMR & FM). Roaming. GPS and Bluetooth.
VFO. VOX. Backlit buttons. Micro-USB. Twin RX (V/U, V/V, U/U).
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Anytone AT-D578UV user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Anytone AT-D578UV. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Anytone AT-D578UV is around:

  • EUR 428.00
  • USD 398.00
Year Historic price Condition Submitted by
2019 EUR 429.00 New / Mint RigReference
2019 EUR 425.00 New / Mint RigReference
2019 USD 399.00 New / Mint RigReference
