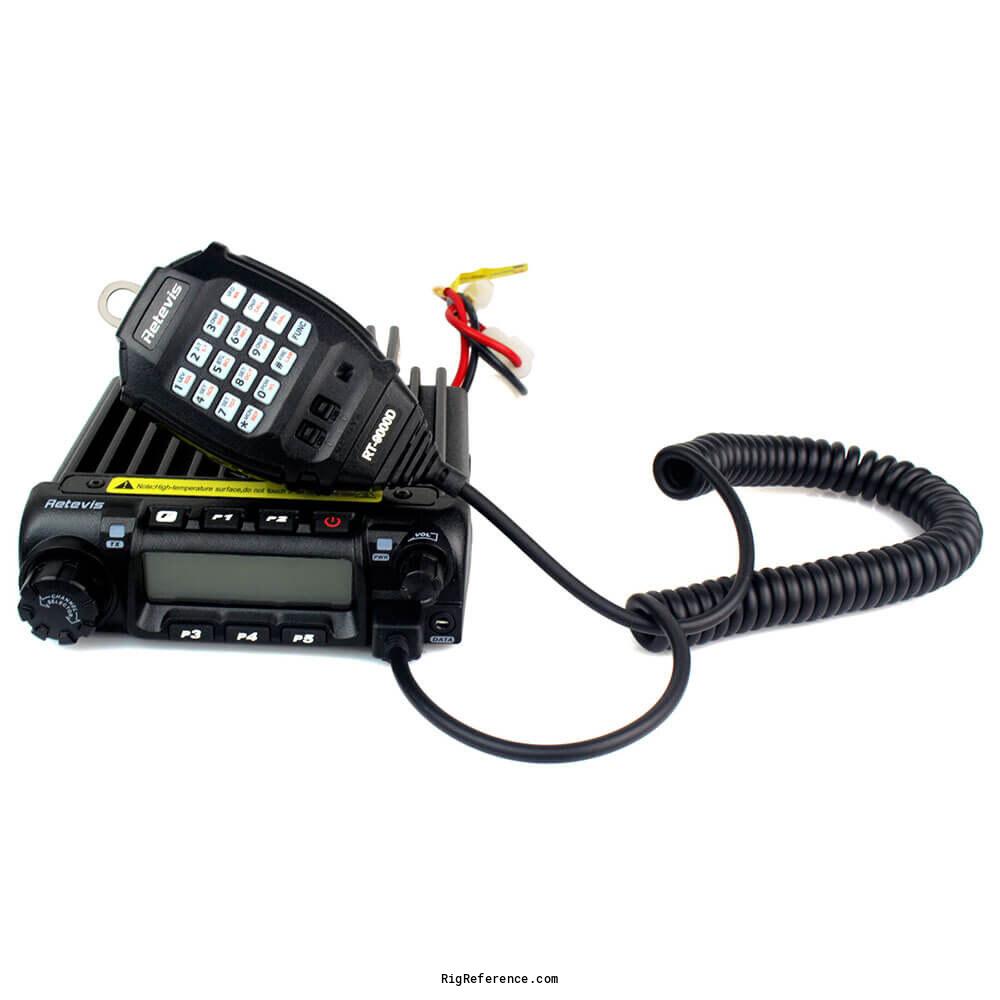

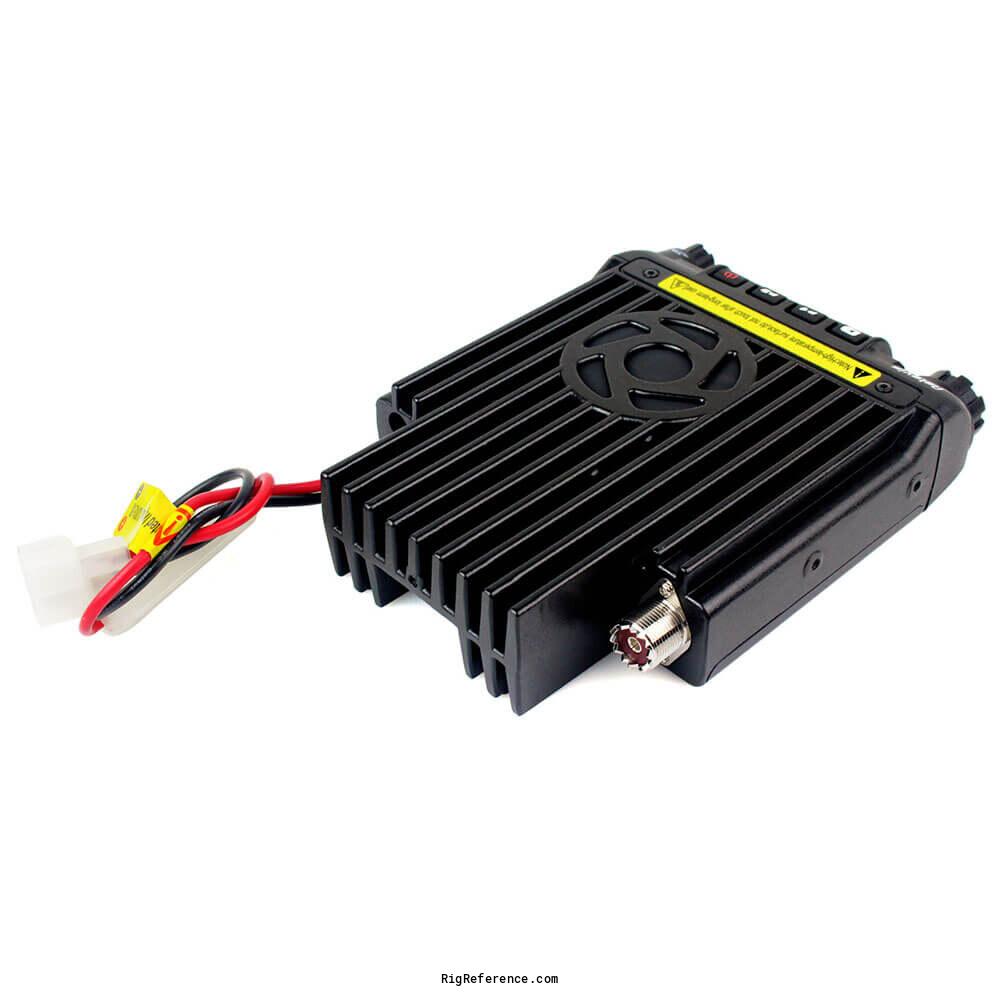

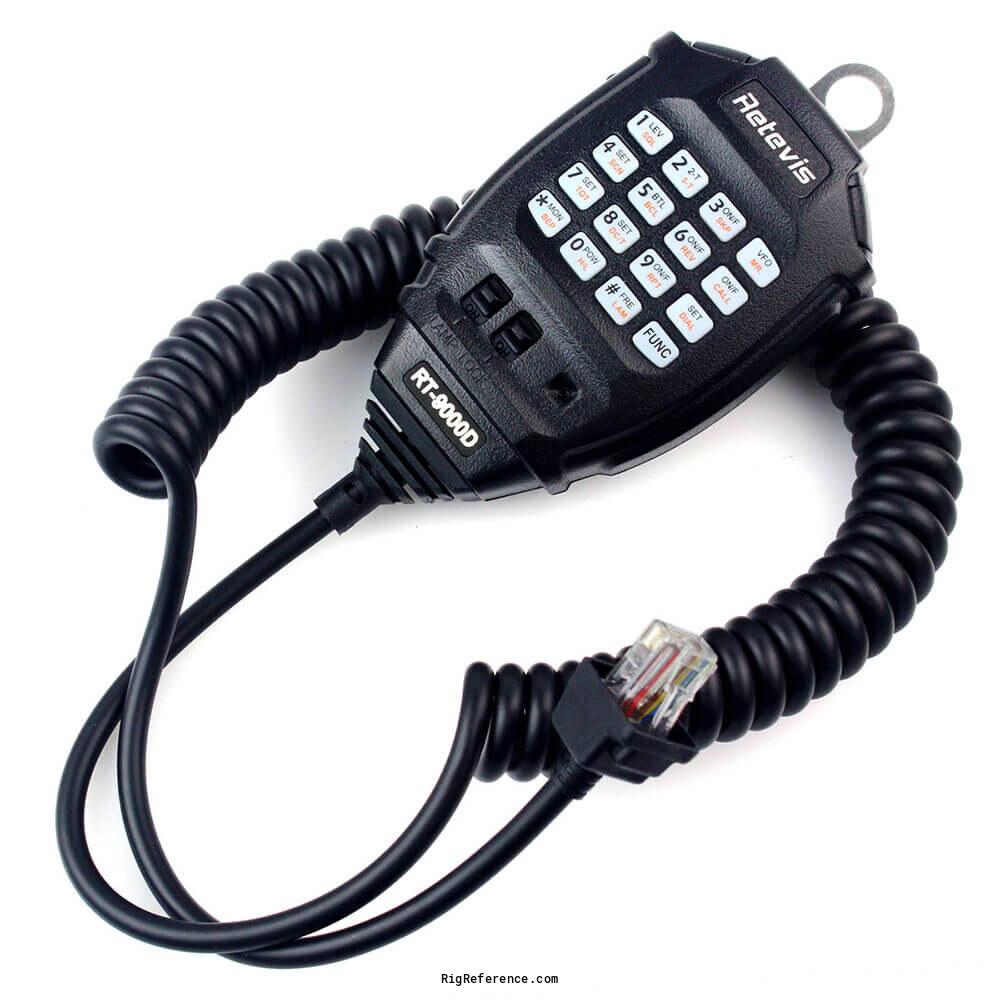

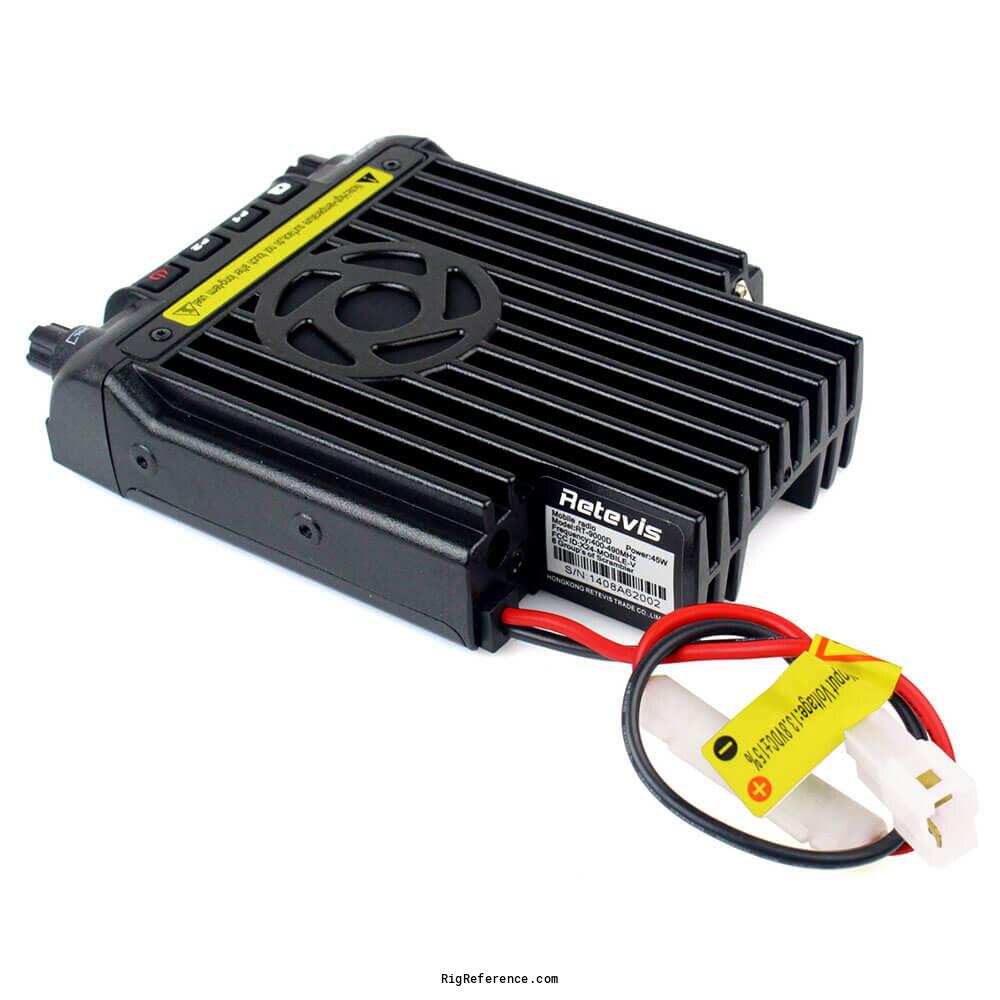

Retevis RT9000D UHF
Amateur Mobile Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Channel spacing: 25 / 20 / 12.5 kHz
Channel step: 5 / 6.25 / 10 / 12.5 / 15 / 20 / 25 / 30 / 50 kHz
Spurious: below -60 dB
Operating temperature: -20 to +60 °C
Sold as separate VHF and UHF versions
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 200 channels in bank(s)
Receiver
- RX-range
- 400-490 MHz
- Modulations
- FM N-FM
- Sensitivity
- 0.25 µV (wide) / 0.35 µV (narrow)
- Selectivity
- Adjacent channel: 70 dB (25 kHz) / 60 dB (12.5 kHz)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- 38.85 / 46.05 MHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 400-490 MHz
- Modulations
- FM N-FM
- RF-output
- 40 / 25 / 10 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 13.8 V DC ±15%
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 145 × 47 × 190 mm (5.71 × 1.85 × 7.48 in)
- Weight
- 966 gr (2.1 lbs) Main unit
- Form factor
- Mobile
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Single-band UHF FM mobile
50 CTCSS / 1024 DCS
DTMF, 2-Tone, 5-Tone coder; ANI ID
1750 Hz tone, repeater offset, reverse
VOX, scan, monitor, TOT, busy lockout
8-group scrambler, compander
P1-P5 programmable keys
Remote kill / stun / revive
Emergency alarm, keypad lock - Accessories
- -
- RigReference ID
- 6715
- MPN
- RETEVIS-RT009000D-UHF
Manuals, diagrams and brochures
-
No manuals yet for the Retevis RT9000D UHF. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Retevis RT9000D UHF
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RT9000D UHF. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Retevis RT9000D UHF in Good condition is around:
- USD 195
These estimates are based on the following prices:
