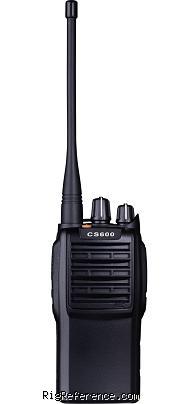

Connect Systems Inc CS600

General characteristics

HAM bands

70cm

Frequency stability

1 p.p.m.

Tuning steps

12.5 kHz

Memories

32 channels in 1 bank(s)

Receiver

RX-range

400-470 MHz

Modulations

FM   DMR

Sensitivity

-117 dBm (Ber 5%) for 12 dB SINAD

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W

Transmitter

TX-range

400-470 MHz

Modulations

FM   DMR

RF-output

4 W

Connections

Antenna

SMA

Impedance

50Ω

Other

-

Electrical

Power requirements

7.2 V DC (1700 mAh Li-ion)

Current drain RX

400 mA

TX

800-1550 mA

Physical

Dimensions (w×h×d)

113 × 56 × 35 mm (4.45 × 2.20 × 1.38 in)

Weight

275 gr (9.7 oz)

Form factor

Mobile

Manufactured

Between 2014 and 20xx in USA

Other features

Usage

Amateur / Ham radio operators

Features + options

ETSI Standard audio encryption

Accessories

-

RigReference ID

6053

MPN

CONNECT-SYSTEMS-INC-CS000600

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Connect Systems Inc CS600. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Connect Systems Inc CS600 is around:

• USD 219 ~ USD 406

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
