Retevis RA89G

General characteristics

HAM bands

?

Frequency stability

5 ppm

Tuning steps

?

Memories

200 channels in bank(s)

Receiver

RX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM

Sensitivity

0.2 µV or better

Selectivity

65 dB or better

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

More than 500 mW, distortion 10% or less

Transmitter

TX-range

GMRS (462-467 MHz)

Modulations

FM   N-FM

RF-output

?

Connections

Antenna

-

Impedance

?

Other

-

Electrical

Power requirements

7.4 V DC Li-ion, 2800 mAh

Current drain RX

60 mA standby, 250 mA working

TX

1.6 A or less

Physical

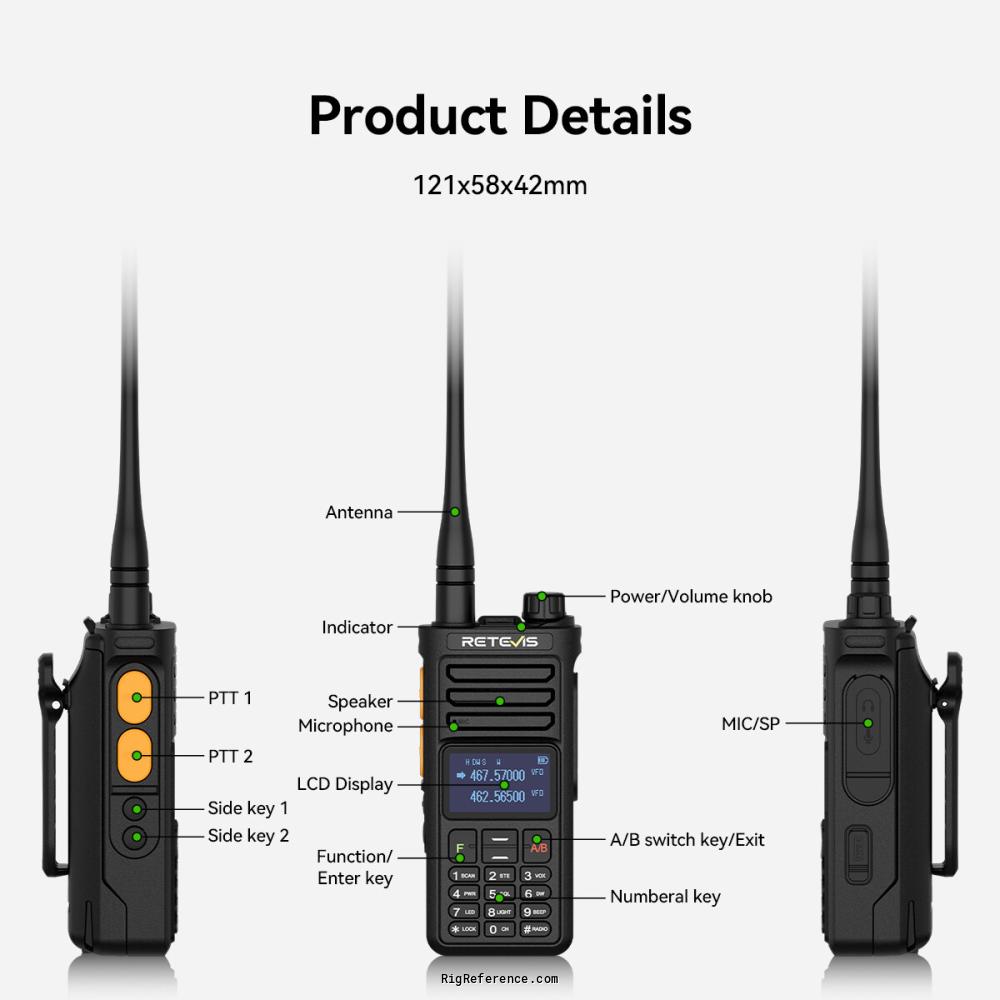

Dimensions (w×h×d)

58 × 121 × 42 mm (2.28 × 4.76 × 1.65 in)

Weight

268 gr (9.5 oz) With battery and antenna

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

General Mobile Radio Service

Features + options

GMRS handheld
Bluetooth app programming
200 channels

Accessories

-

RigReference ID

6729

MPN

RETEVIS-RA000089G
