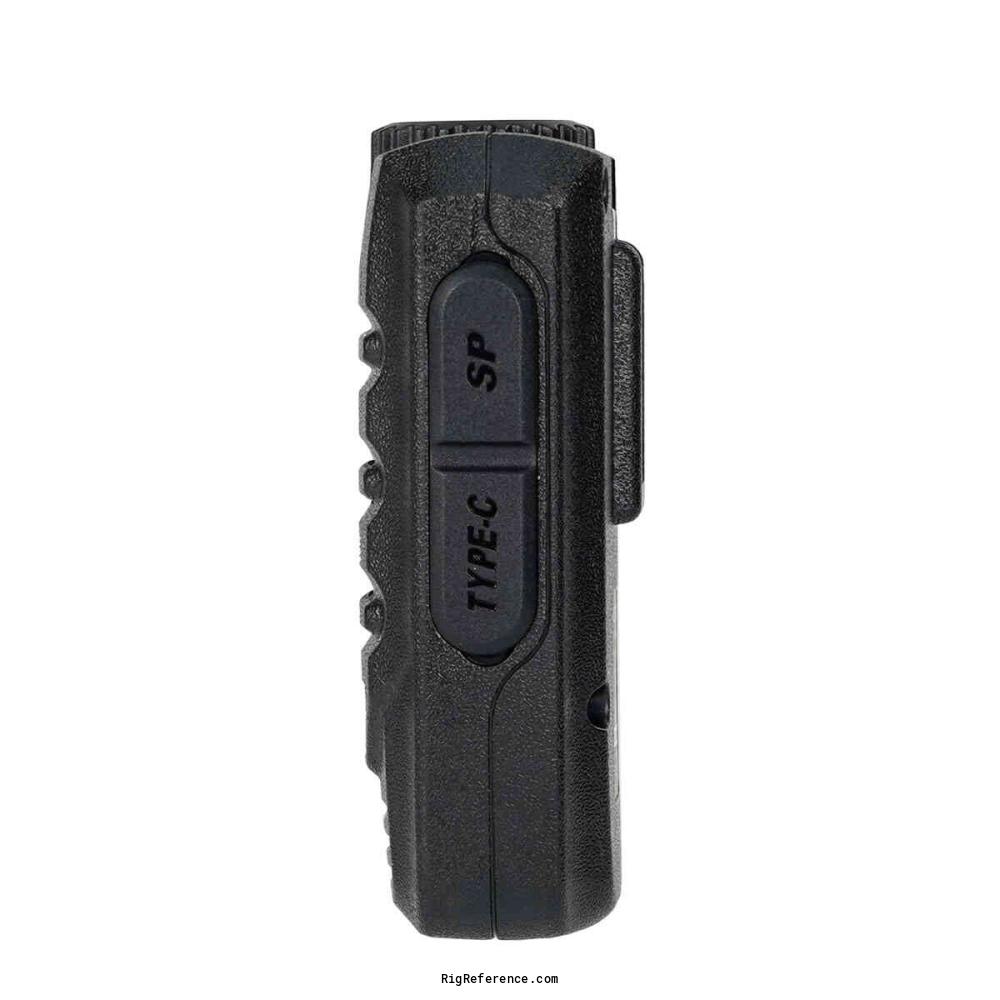

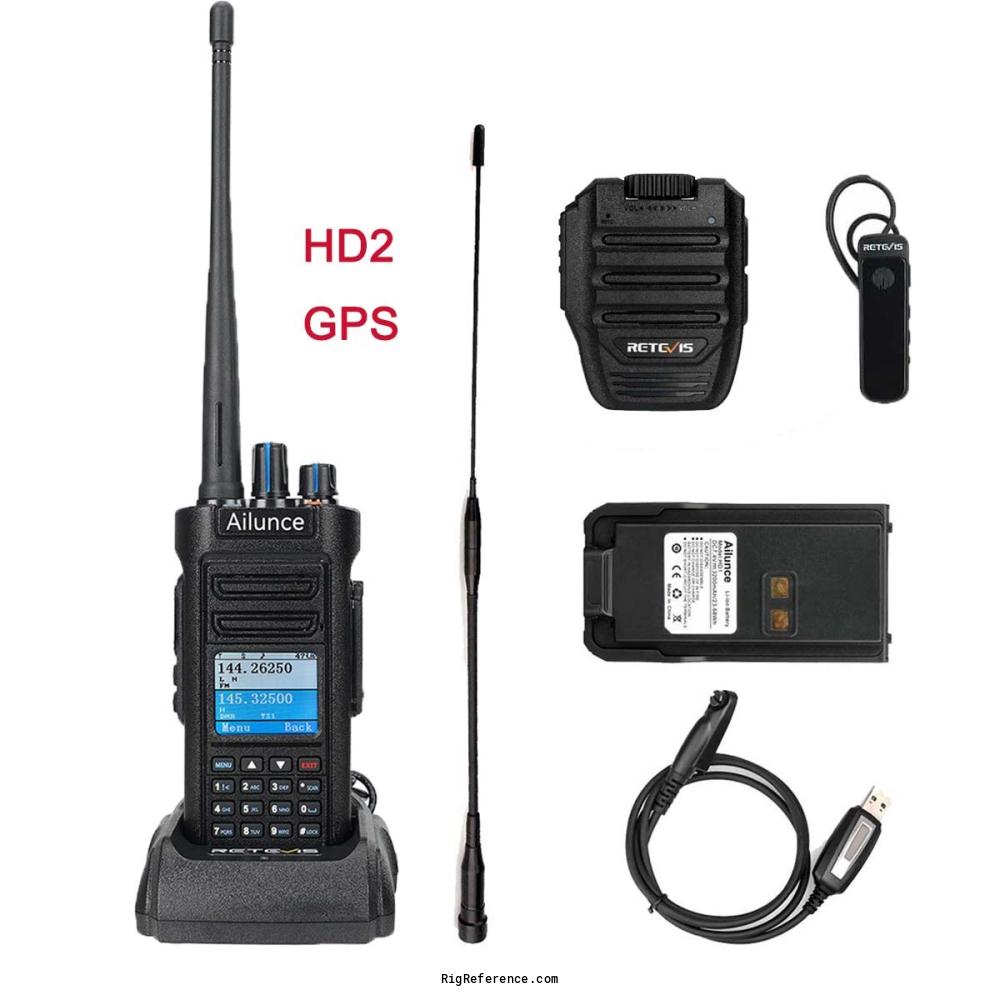

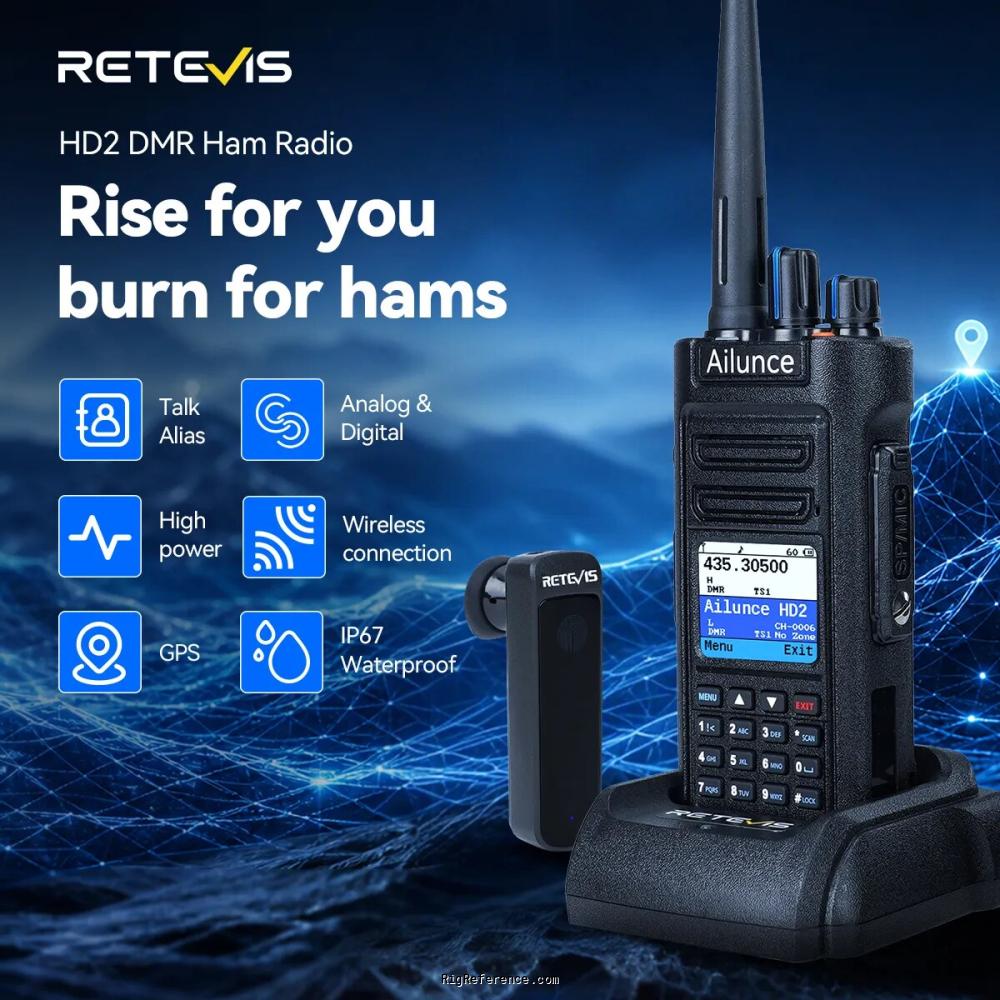

Ailunce HD2

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

±1.0 ppm

Tuning steps

?

Memories

3000 channels in bank(s)

Receiver

RX-range

136-174 / 400-520 MHz

Modulations

FM   N-FM   DMR

Sensitivity

Analog: 0.35 µV (20 dB SINAD)
Digital: 0.30 µV (5% BER), 0.70 µV (1% BER)

Selectivity

TIA603C: 65 dB, ETSI: 60 dB

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

500 mW or more

Transmitter

TX-range

US: 144-148 / 222-225 / 420-450 MHz
EU: 144-146 / 430-440 MHz

Modulations

FM   N-FM   DMR

RF-output

10 / 5 / 1 / 0.5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

Li-ion, 3200 mAh (max. 8.4 V)

Current drain RX

?

TX

Analog 1.6 A or less, digital 0.9 A or less

Physical

Dimensions (w×h×d)

65 × 150 × 35 mm (2.56 × 5.91 × 1.38 in)

Weight

365 gr (12.9 oz)

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Dual-band DMR / analog
GPS, Bluetooth
AMBE+2, ETSI TS 102 361-1/-2/-3
AES256 encryption
Single, group and all call
Lone worker, emergency alarm
Remote kill / stun / activate
Dual PTT
IP67, USB-C charging

Accessories

-

RigReference ID

6733

MPN

AILUNCE-HD000002

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Ailunce HD2. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Ailunce HD2. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Ailunce HD2 in Good condition is around:

• USD 240

Price History Chart

These estimates are based on the following prices:
