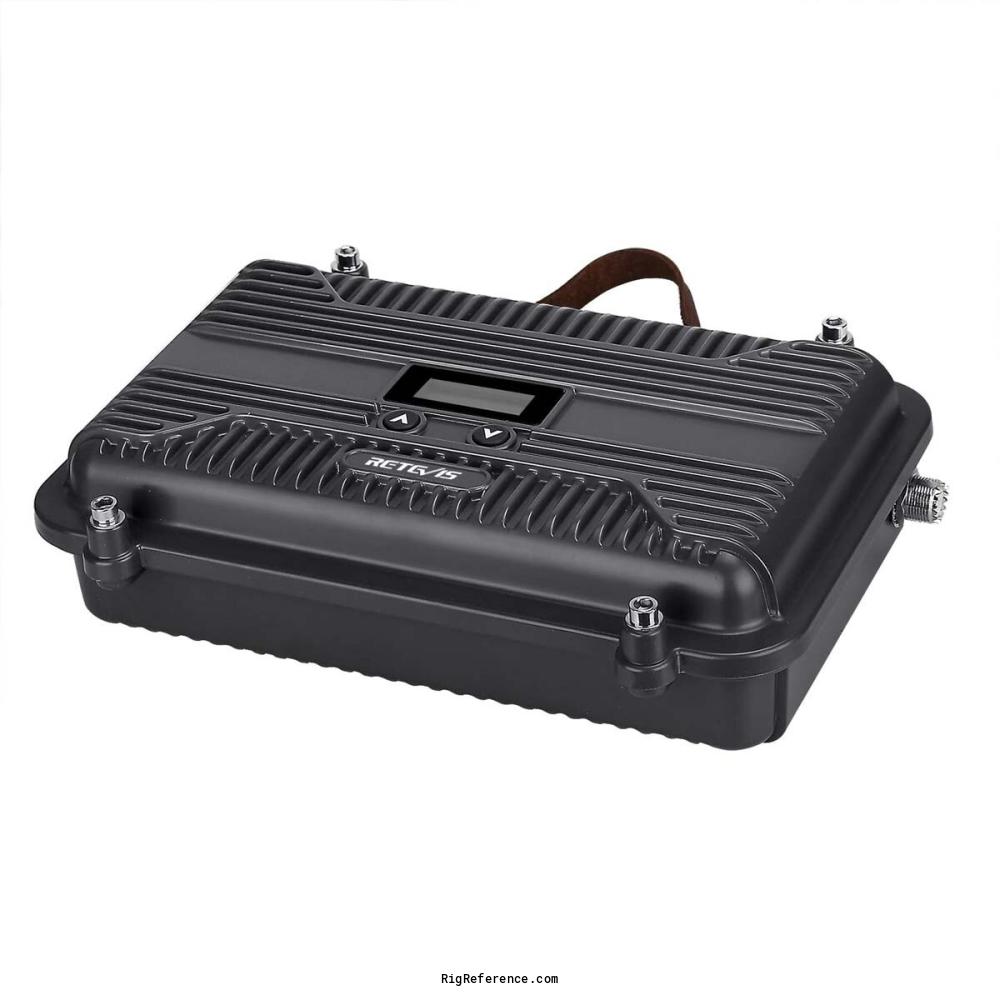

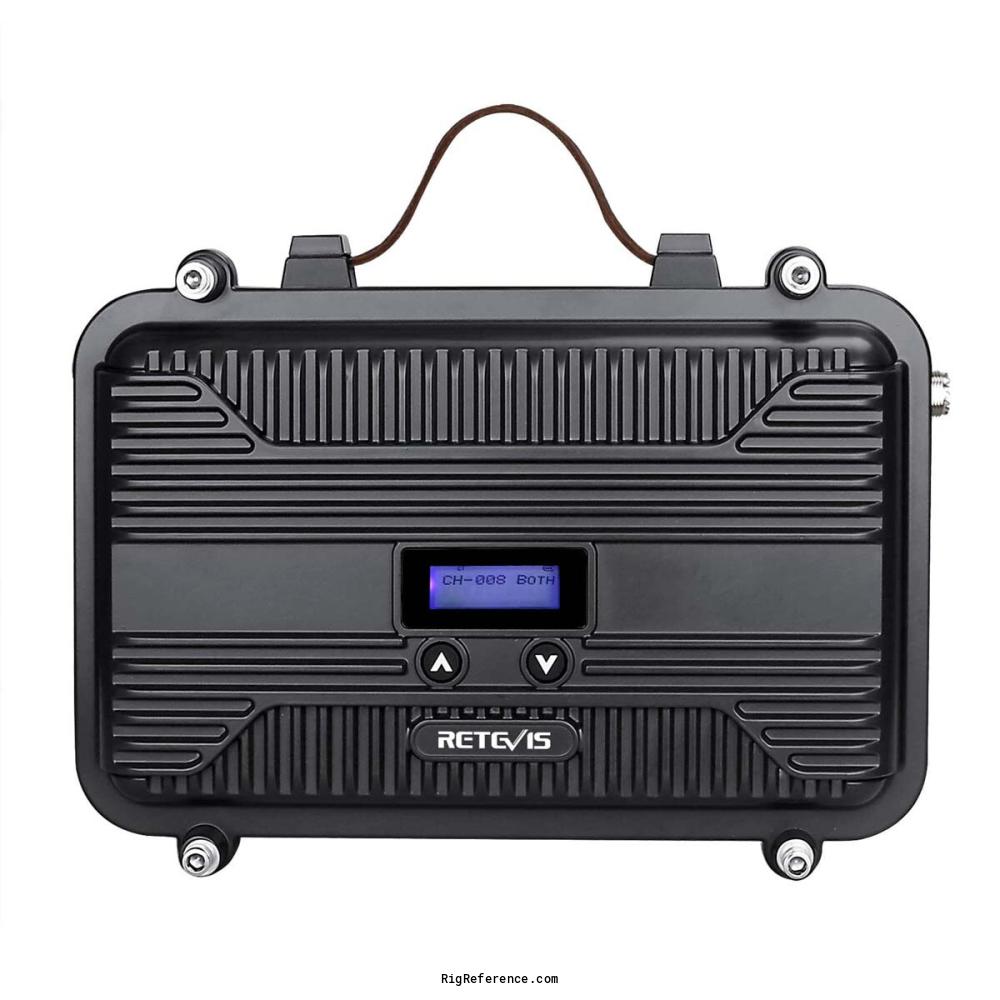

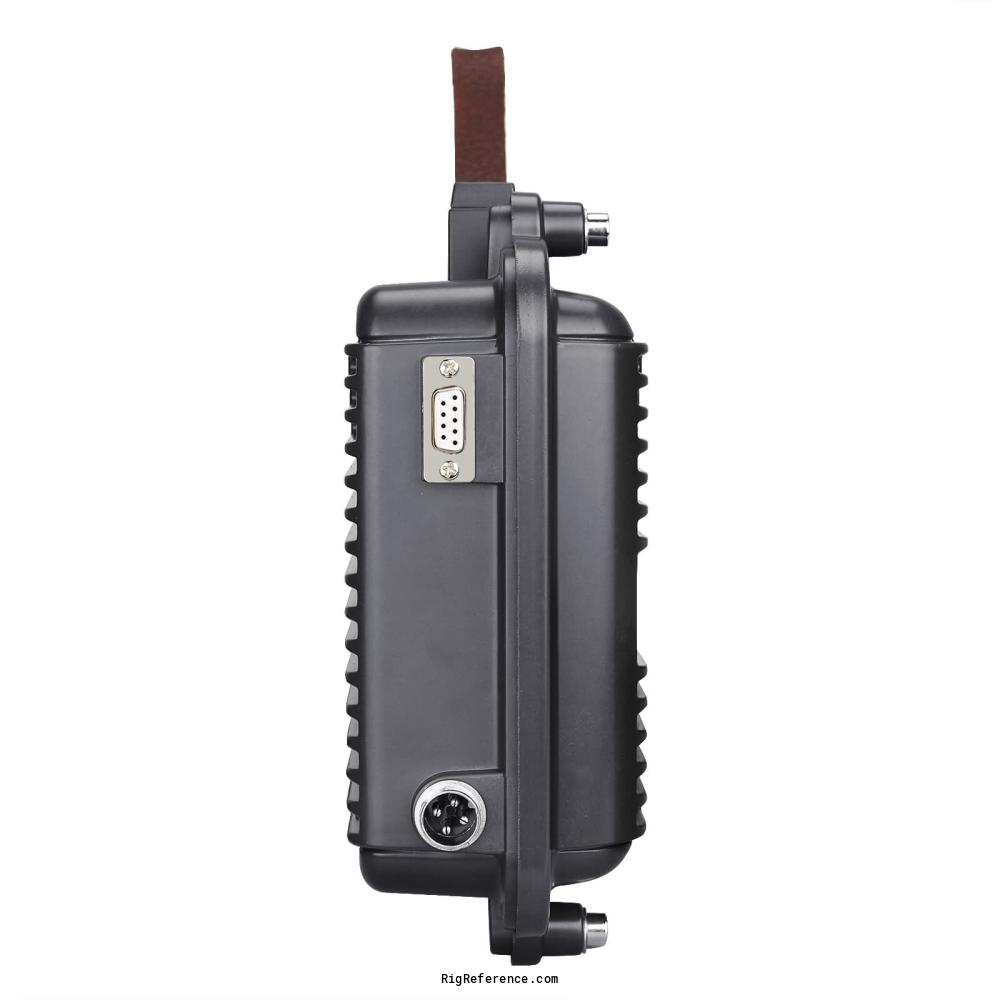

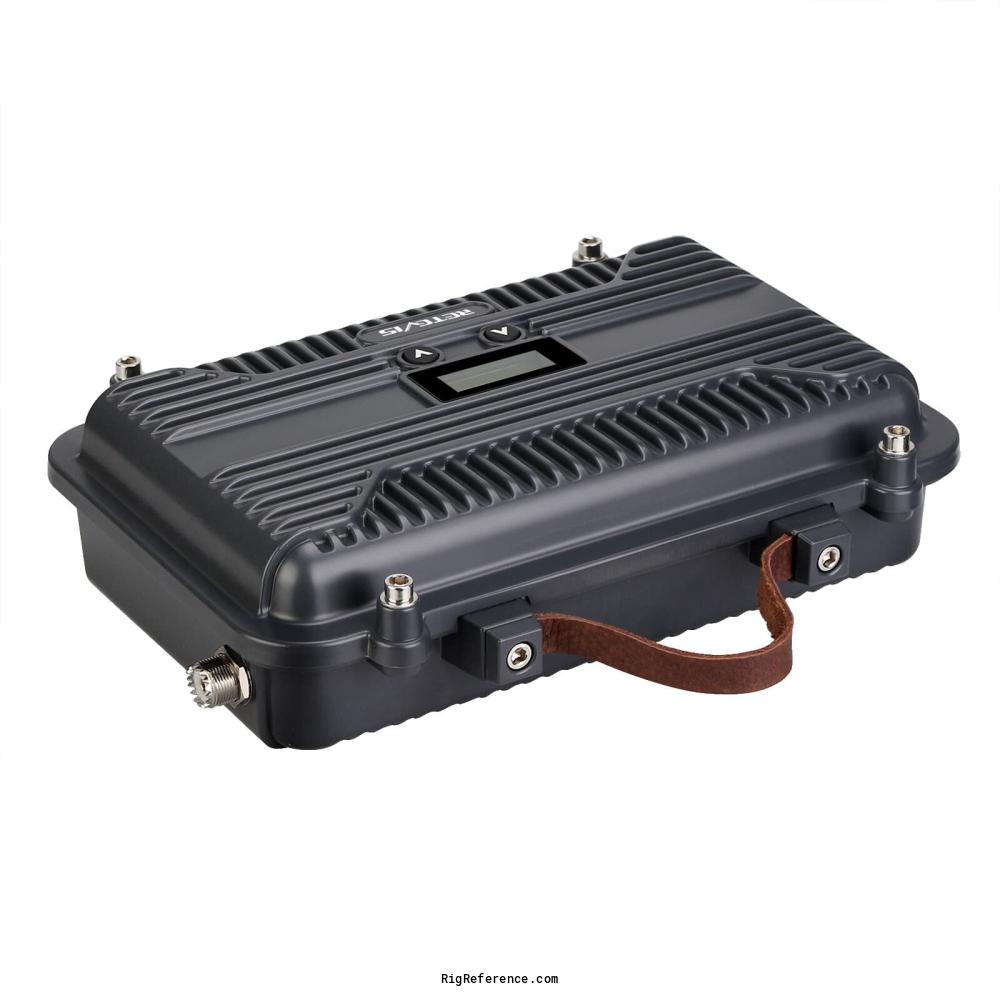

Retevis RT97P

General characteristics

HAM bands

?

Frequency stability

±0.5 ppm

Tuning steps

?

Memories

8 channels in bank(s)

Receiver

RX-range

136-174 / 400-470 MHz

Modulations

FM   N-FM   DMR

Sensitivity

Analog: 0.25 µV (12 dB SINAD)
Digital: -120 dBm (5% BER)

Selectivity

70 dB (25 kHz) / 60 dB (12.5 kHz)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

?

Transmitter

TX-range

136-174 / 400-470 MHz

Modulations

FM   N-FM   DMR

RF-output

10 / 5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

12-24 V DC

Current drain RX

?

TX

2.5 A or less

Physical

Dimensions (w×h×d)

280 × 75 × 210 mm (11.02 × 2.95 × 8.27 in)

Weight

2.62 kg (5.8 lbs)

Form factor

Base Station

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Commercial / Land mobile communication

Features + options

Mini portable DMR / analog repeater
DMR, FM or DMR+FM mixed
ETSI TS 102 361-1/-2/-3
8 channels
Car charger

Accessories

-

RigReference ID

6741

MPN

RETEVIS-RT000097P

Manuals, diagrams and brochures

No manuals yet for the Retevis RT97P. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RT97P. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis RT97P in Good condition is around:

• USD 600

Price History Chart

These estimates are based on the following prices:
