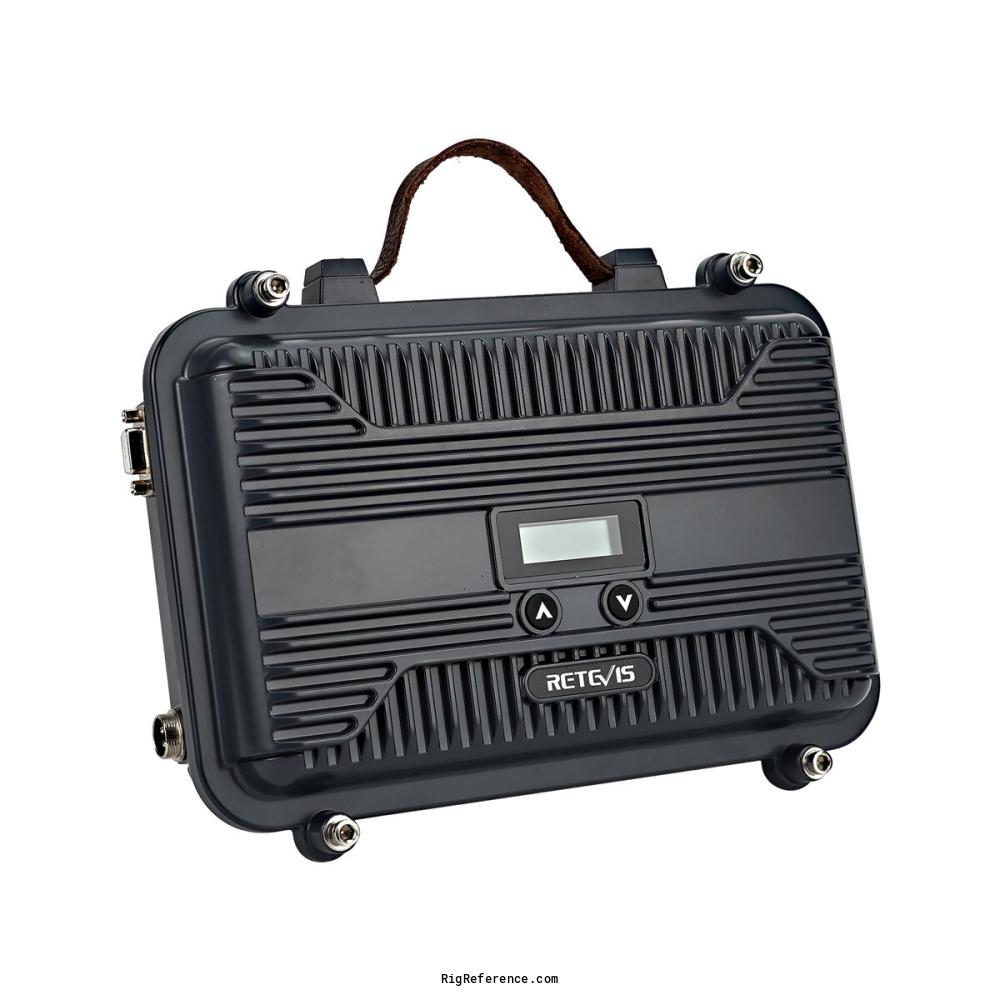

Retevis RT97S

General characteristics

HAM bands

?

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

8 channels in bank(s)

Receiver

RX-range

467.550-467.725 MHz

Modulations

FM   N-FM

Sensitivity

0.2 µV (wide) / 0.25 µV (narrow), 12 dB SINAD

Selectivity

70 dB (wide) / 65 dB (narrow)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

55 dB or better

Audio output

?

Transmitter

TX-range

462.550-462.725 MHz

Modulations

FM   N-FM

RF-output

5 W

Connections

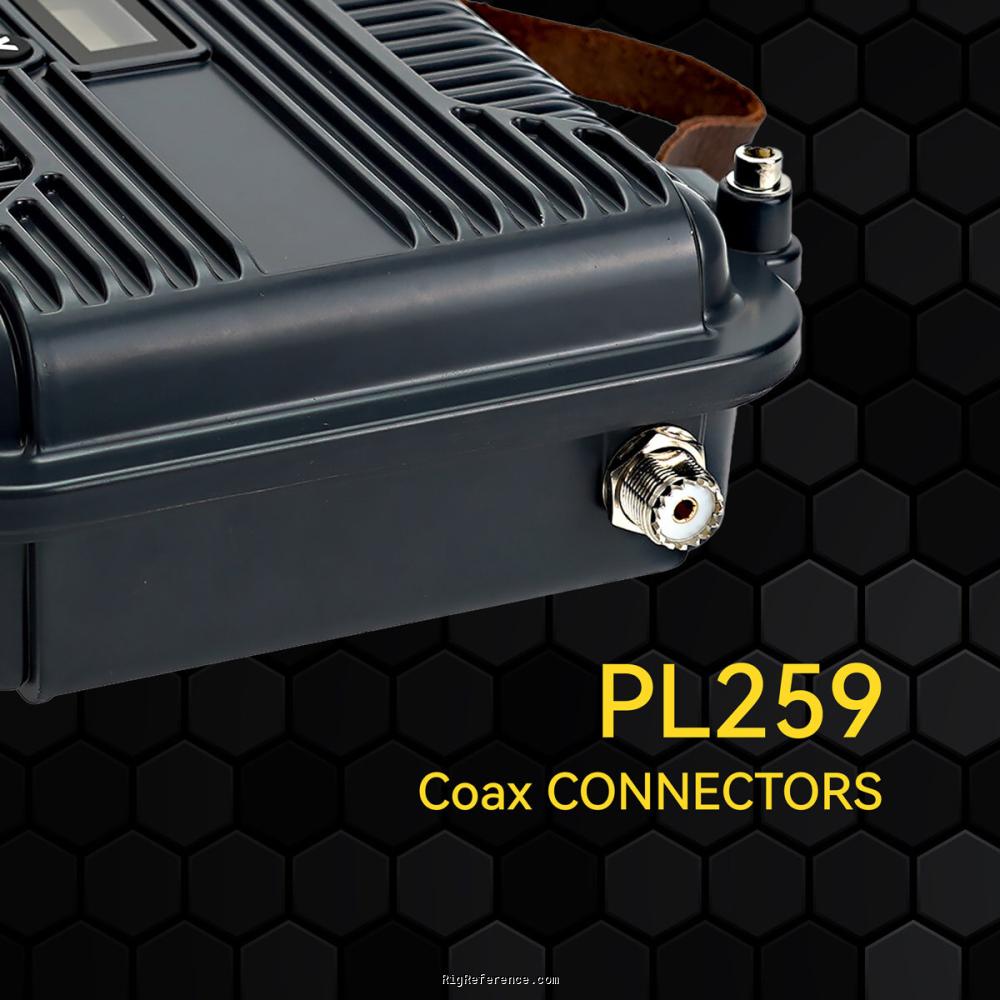

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

12-24 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

260 × 70 × 210 mm (10.24 × 2.76 × 8.27 in)

Weight

1.66 kg (3.7 lbs)

Form factor

Base Station

Manufactured

Between 20xx and 20xx in China

Other features

Usage

General Mobile Radio Service

Features + options

Portable plug-and-play GMRS repeater
8 GMRS repeater channels
Full duplex

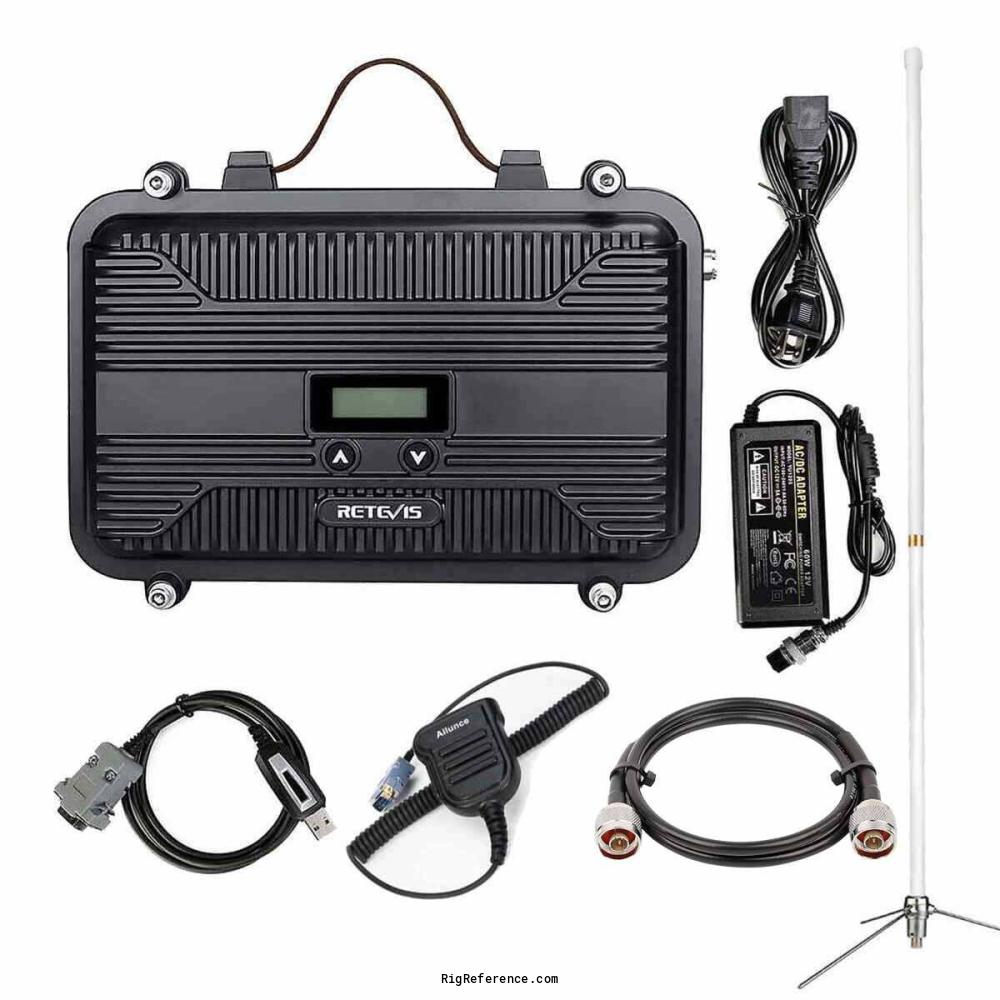

Accessories

-

RigReference ID

6742

MPN

RETEVIS-RT000097S

Manuals, diagrams and brochures

No manuals yet for the Retevis RT97S. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Retevis RT97S. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Retevis RT97S in Good condition is around:

• USD 340
