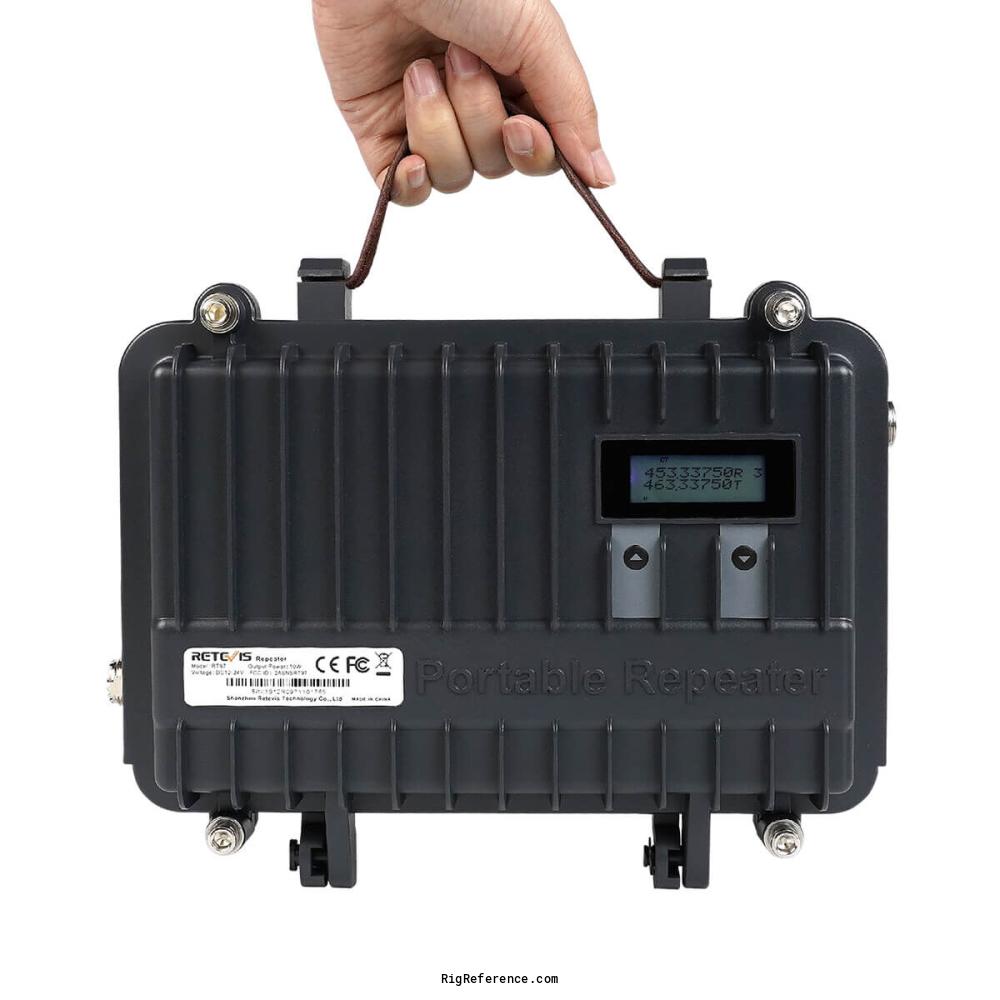

Retevis RT97

General characteristics

HAM bands

?

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

16 channels in bank(s)

Receiver

RX-range

467 MHz GMRS

Modulations

FM   N-FM

Sensitivity

0.2 µV (wide) / 0.25 µV (narrow), 12 dB SINAD

Selectivity

70 dB (wide) / 65 dB (narrow)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

55 dB or better

Audio output

?

Transmitter

TX-range

462 MHz GMRS

Modulations

FM   N-FM

RF-output

5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

12-24 V DC

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

260 × 70 × 210 mm (10.24 × 2.76 × 8.27 in)

Weight

1.66 kg (3.7 lbs)

Form factor

Base Station

Manufactured

Between 20xx and 20xx in China

Other features

Usage

General Mobile Radio Service

Features + options

Portable GMRS repeater
16 channels
Full duplex

Accessories

-

RigReference ID

6743

MPN

RETEVIS-RT000097
