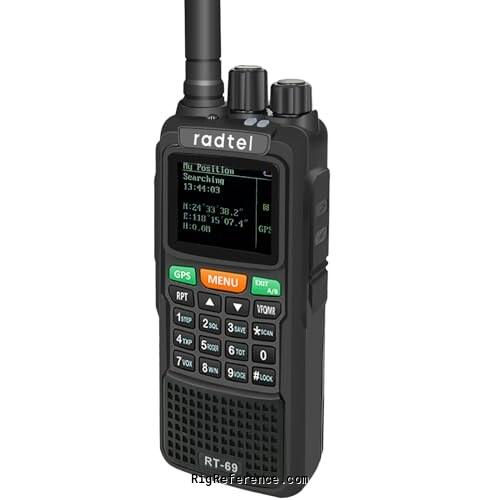

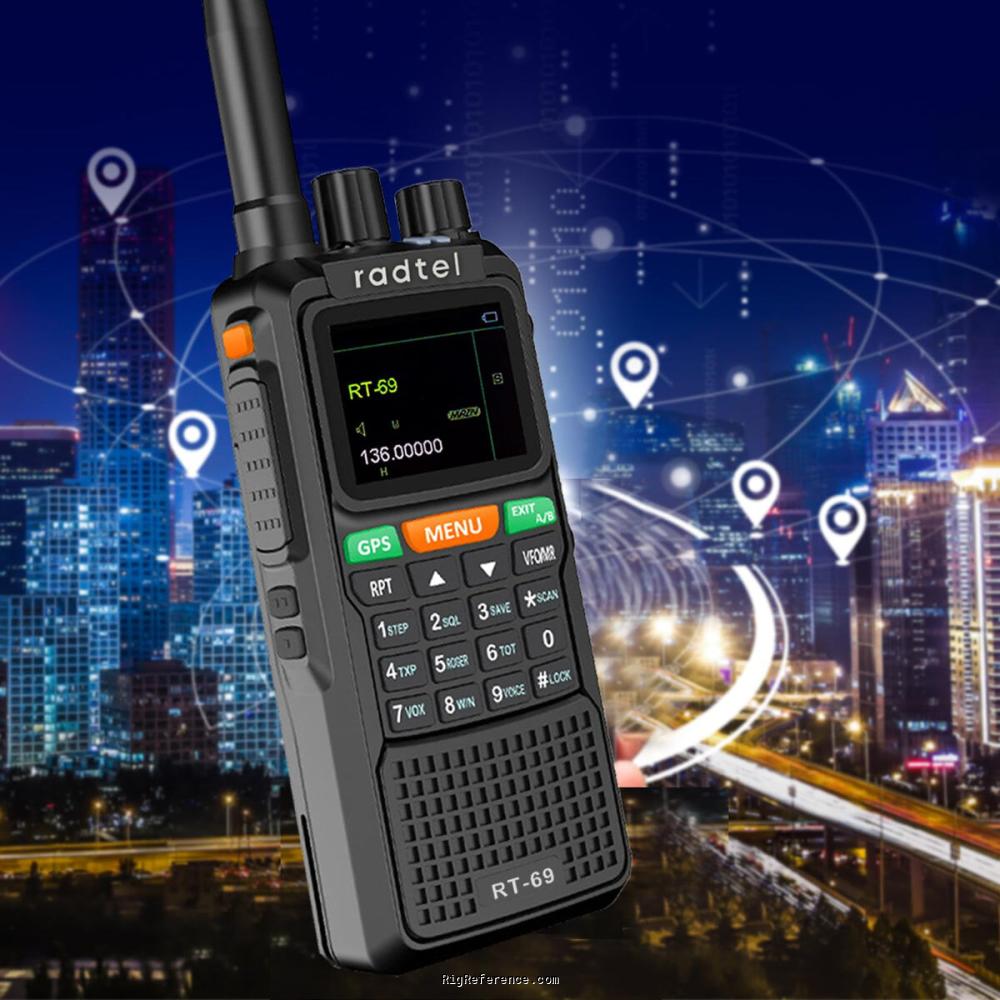

Radtel RT-69

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

±2.5 ppm

Tuning steps

?

Memories

999 channels in bank(s)

Receiver

RX-range

136-174 / 200-260 / 350-390 / 400-520 MHz
Airband AM 108-136 MHz
FM broadcast 87-108 MHz

Modulations

AM   FM   N-FM   W-FM

Sensitivity

0.25 µV (12 dB SINAD)

Selectivity

70 dB (wide) / 60 dB (narrow)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

1 W max.

Transmitter

TX-range

136-174 / 200-260 / 350-390 / 400-520 MHz

Modulations

FM   N-FM

RF-output

VHF: 10 / 5 / 1 W
UHF: 10 / 4 / 1 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

7.4 V DC, Li-ion 3000 mAh

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

57 × 133 × 40 mm (2.24 × 5.24 × 1.57 in)

Weight

490 gr (1.1 lbs)

Form factor

Handheld

Manufactured

Between 20xx and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

6-band handheld

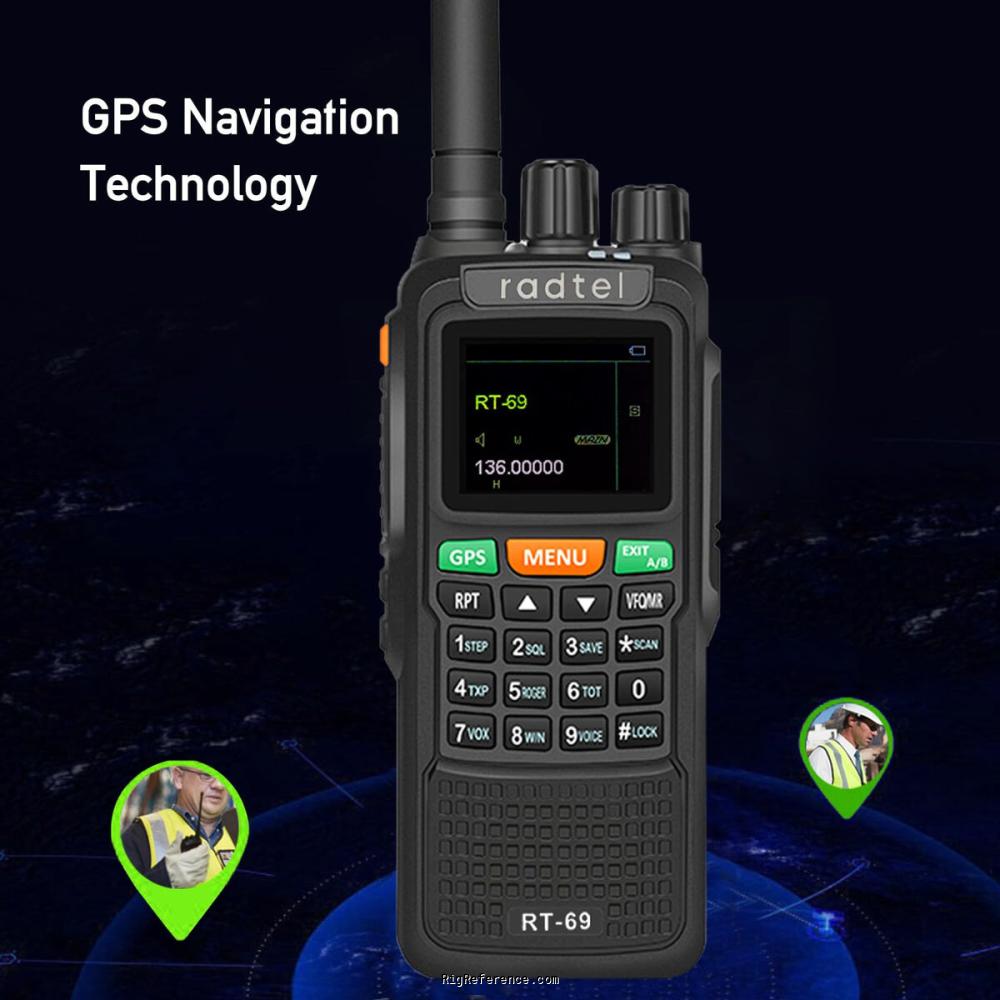

GPS
Cross-band repeater
Airband AM receive
50 CTCSS / 105 DCS, tone scan
SOS, VOX
Channel name edit

Accessories

-

RigReference ID

6764

MPN

RADTEL-RT-000069

Similar rigs

Manuals, diagrams and brochures

No manuals yet for the Radtel RT-69. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.



Upload relevant documents

Reviews

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Radtel RT-69. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the Radtel RT-69 in Good condition is around:

• USD 116

Price History Chart

These estimates are based on the following prices:
