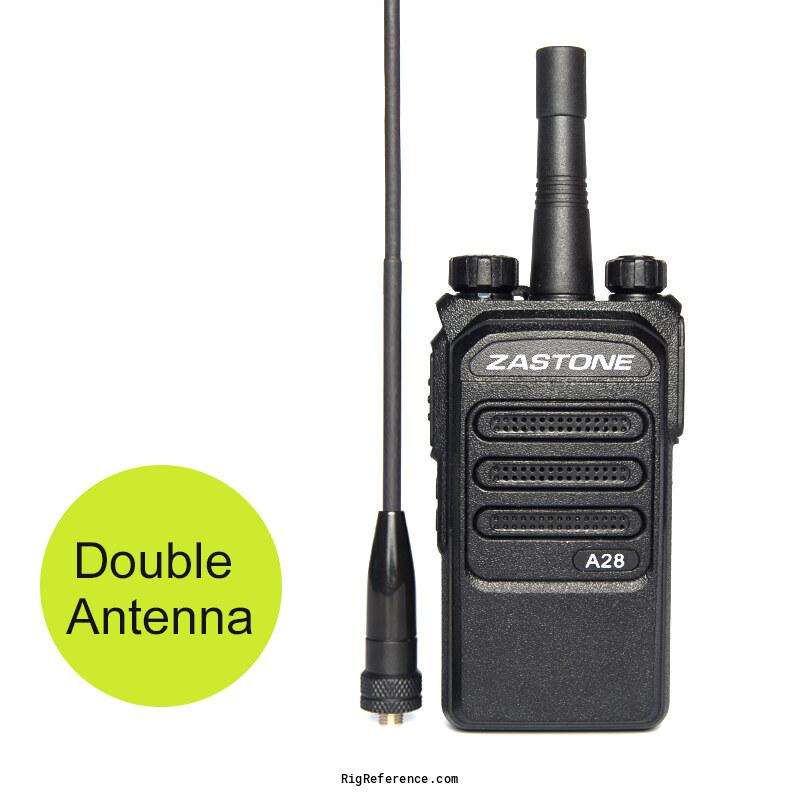

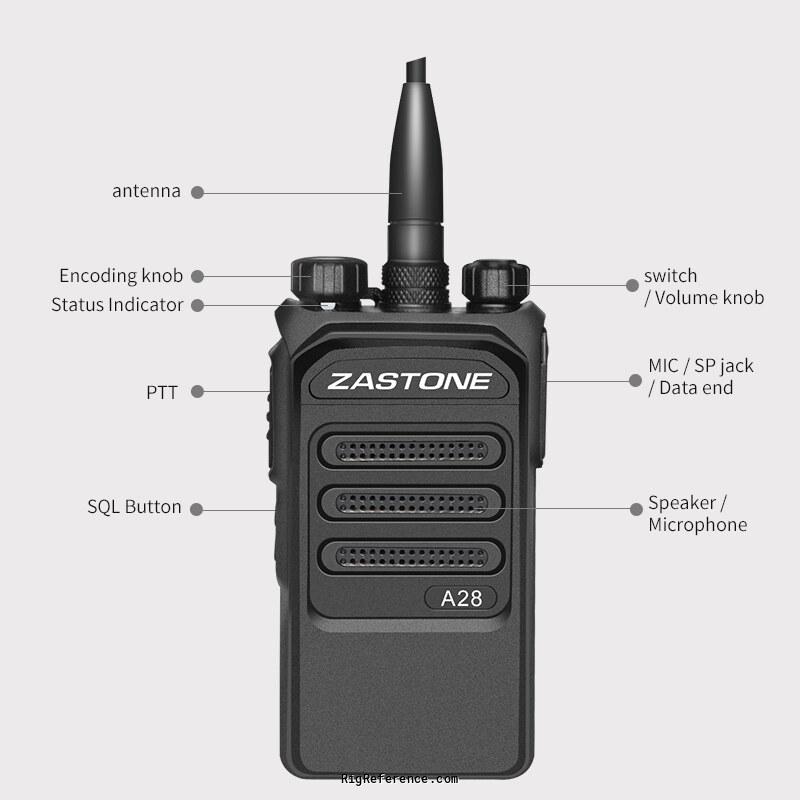

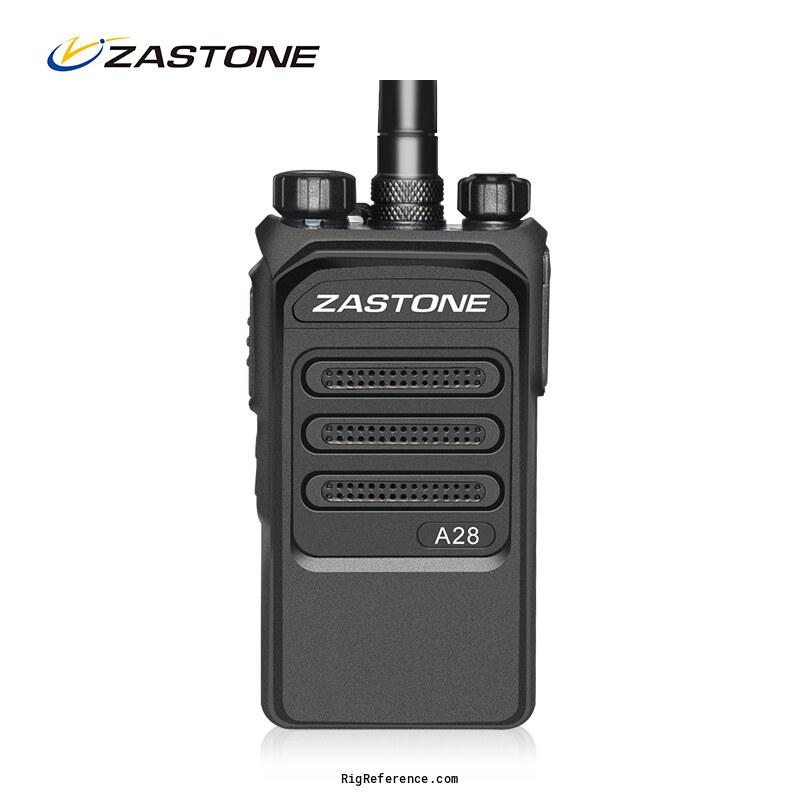

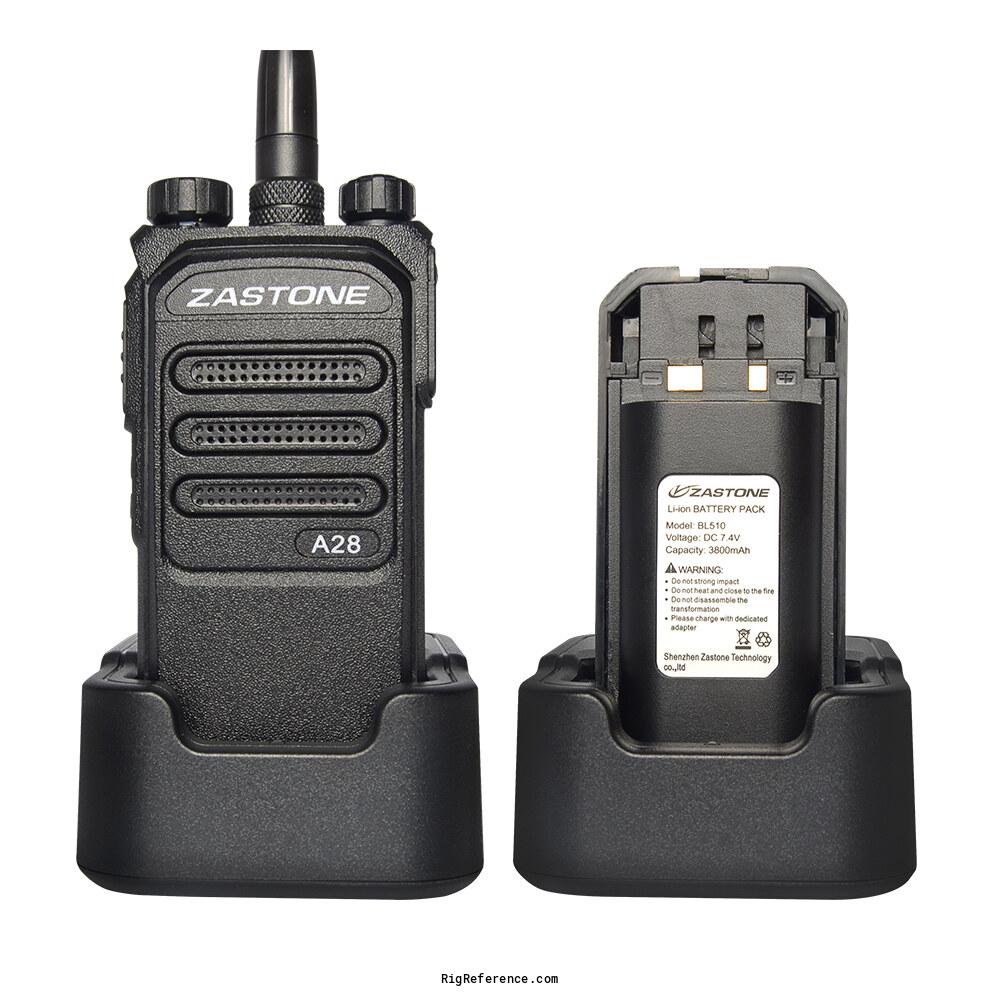

Zastone A28
Commercial Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Audio distortion: less than 5%
Operating temperature: -25 to +55 °C
General characteristics
- HAM bands
- ?
- Frequency stability
- 2.5 ppm
- Tuning steps
- ?
- Memories
- 16 channels in bank(s)
Receiver
- RX-range
- 400-480 MHz
- Modulations
- FM N-FM
- Sensitivity
- 0.18 µV / 0.22 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- More than 700 mW
Transmitter
- TX-range
- 400-480 MHz
- Modulations
- FM N-FM
- RF-output
- 10 W
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 7.5 V DC, Li-ion battery
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- 53 × 109 × 30 mm (2.09 × 4.29 × 1.18 in)
- Weight
- 290 gr (10.2 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- UHF business handheld
16 channels
CTCSS / DCS
High / low power
Wide / narrow (25 / 12.5 kHz)
Busy channel lockout
DTMF encode
VOX, scan, monitor, TOT
Squelch levels - Accessories
- -
- RigReference ID
- 6791
- MPN
- ZASTONE-A000028
Manuals, diagrams and brochures
-
No manuals yet for the Zastone A28. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Zastone A28
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone A28. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Zastone A28 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
