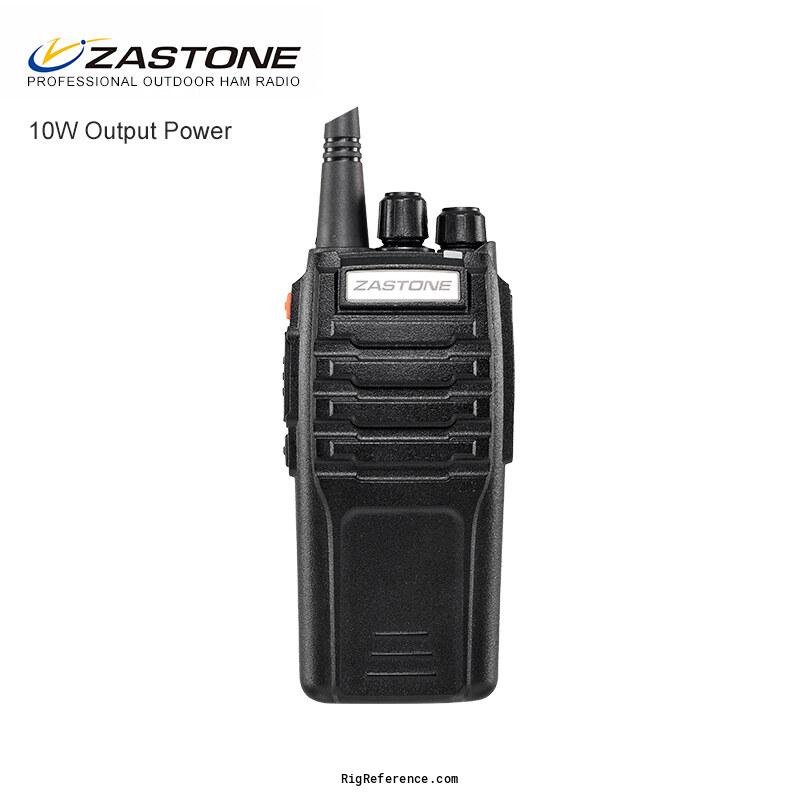

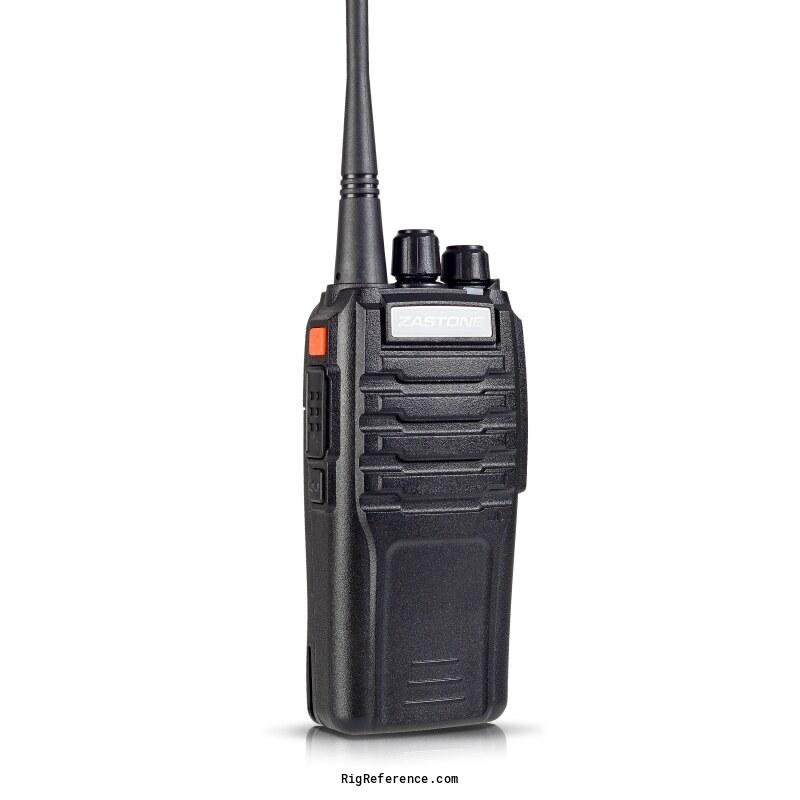

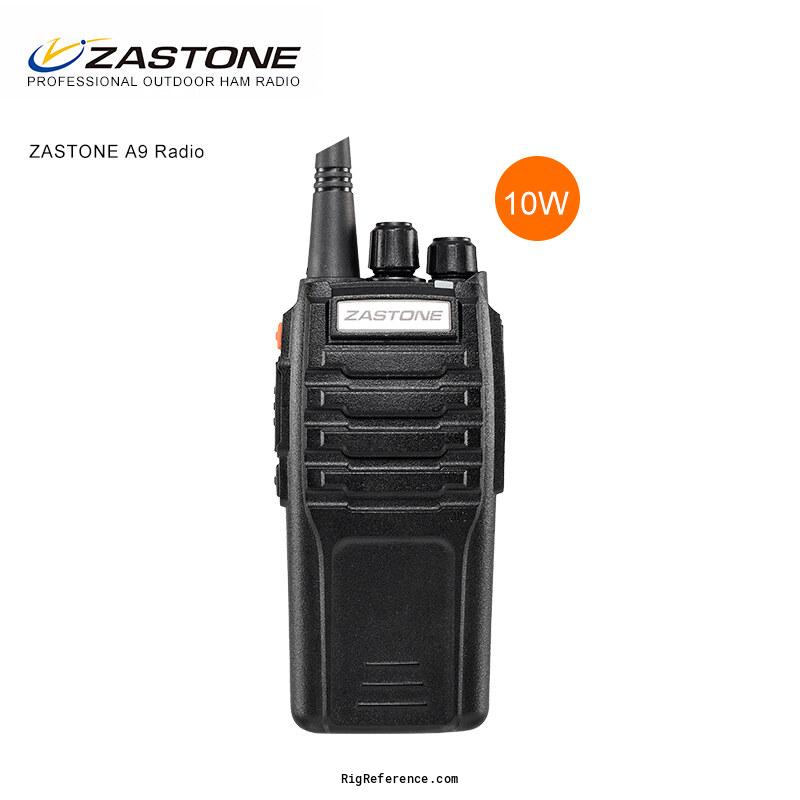

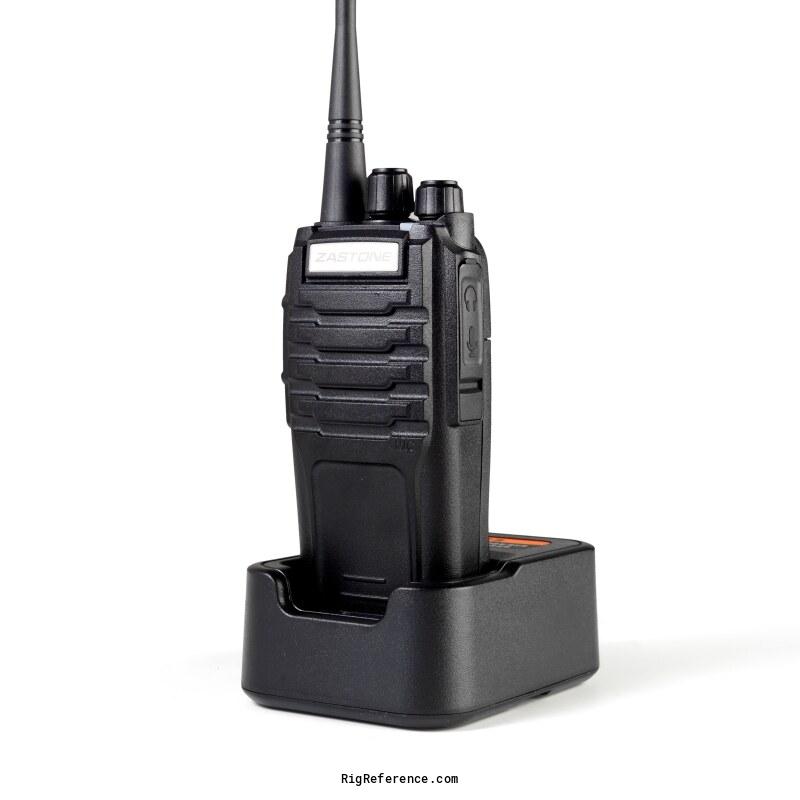

Zastone A9
Commercial Handheld Transceiver
Add a review (+10 rep) Own this rig? Add it to your shack
Modulation: F3E
Spurious: less than -60 dB
CTCSS / DCS deviation: ±5 kHz or less
Operating temperature: -25 to +55 °C
Dimensions 130 x 59 x 37.5 mm
General characteristics
- HAM bands
- ?
- Frequency stability
- ±2.5 ppm
- Tuning steps
- ?
- Memories
- 16 channels in bank(s)
Receiver
- RX-range
- 400-480 MHz (UHF version) or 136-174 MHz (VHF version)
- Modulations
- FM N-FM
- Sensitivity
- Less than 0.18 µV / 0.22 µV
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- 700 mW or more
Transmitter
- TX-range
- 400-480 MHz (UHF version) or 136-174 MHz (VHF version)
- Modulations
- FM N-FM
- RF-output
- 10 W
Connections
- Antenna
- -
- Impedance
- ?
- Other
- -
Electrical
- Power requirements
- 7.5 V DC ±20%, Li-ion 2500 mAh
- Current drain RX
- 72 mA standby (36 mA power save)
- TX
- 1.5 A or less
Physical
- Dimensions (w×h×d)
- 59 × 130 × 37 mm (2.32 × 5.12 × 1.46 in)
- Weight
- 290 gr (10.2 oz)
- Form factor
- Handheld
- Manufactured
- Between 20xx and 20xx in China
Other features
- Usage
- Commercial / Land mobile communication
- Features + options
- Single-band business handheld, UHF or VHF version
10 W output
16 channels - Accessories
- -
- RigReference ID
- 6792
- MPN
- ZASTONE-A000009
Manuals, diagrams and brochures
-
No manuals yet for the Zastone A9. Have a PDF of the user manual, service manual, or schematic? Upload it and help the next operator.
- Upload relevant documents
Reviews
Be the first to review the Zastone A9
No reviews yet. Share your experience and earn +10 reputation.
Write the first reviewNew and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Zastone A9. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Zastone A9 is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
