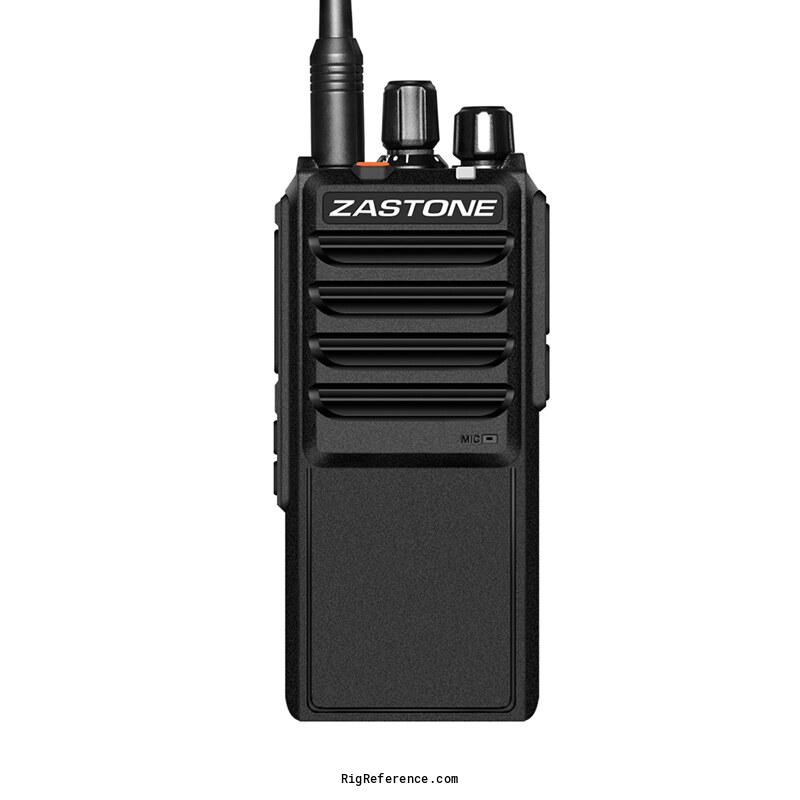

Zastone L2000

Commercial Handheld Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Add a review (+10 rep) Own this rig? Add it to your shack

Modulation: F3E, limit ±5 kHz
Spurious rejection: 60 dB

General characteristics

HAM bands: ?
Frequency stability: ±2.5 ppm
Tuning steps: ?
Memories: 16 channels in bank(s)

Receiver

RX-range: 136-174 MHz (VHF version) or 400-480 MHz (UHF version)
Modulations: FM N-FM
Sensitivity: Less than 0.18 µV
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 400 mW or more

Transmitter

TX-range: 136-174 MHz (VHF version) or 400-480 MHz (UHF version)
Modulations: FM N-FM
RF-output: 20 / 10 / 5 W

Connections

Antenna: -
Impedance: ?
Other: -

Electrical

Power requirements: 12.6 V, 4000 mAh
Current drain RX: ?
TX: 3.5 A

Physical

Dimensions (w×h×d): 77 × 170 × 42 mm (3.03 × 6.69 × 1.65 in)
Weight: 550 gr (1.2 lbs)
Form factor: Handheld
Manufactured: Between 20xx and 20xx in China

Other features

Usage: Commercial / Land mobile communication
Features + options: High-power single-band business handheld
20 W output
16 channels
Simplex
Stereo speakers
Long antenna (385 mm)
Accessories: -
RigReference ID: 6801
MPN: ZASTONE-L002000
