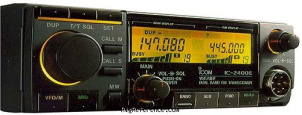

ICOM IC-2400E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find ICOM IC-2400E rigs and spare parts on eBay

The ICOM IC-2400E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. RF output is High: 45/35 W, Low: 5/5 W. The radio features Twin RX, 1 memory bank with 40 channels. Power requirements are 13.8V DC. Current drain during transmit is Max 10.5 A. Dimensions are 50 × 150 × 195 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 40 channels in 1 bank(s)

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 45/35 W, Low: 5/5 W

Connections

Antenna: -
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: ?
TX: Max 10.5 A

Physical

Dimensions (w×h×d): 150 × 50 × 195 mm (5.91 × 1.97 × 7.68 in)
Weight: ?
Form factor: Mobile
Manufactured: Between 1989 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: Twin RX
Accessories: -
RigReference ID: 3007
MPN: ICOM-IC-002400E
