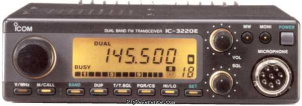

ICOM IC-3220E

Mobile VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The ICOM IC-3220E is a Mobile VHF/UHF Transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. The RF output is High: 25/25 W, Low 2: 10/10 W, Low 1: 1/1 W. It features 1 memory bank with 36 channels. Power requirements are 13.8V DC. Current drain is 0.8-1.2 A while receiving and Max 8 A while transmitting. Dimensions are 40 × 140 × 195 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: 36 channels in 1 bank(s)

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: ?
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 25/25 W, Low 2: 10/10 W, Low 1: 1/1 W

Connections

Antenna: SO-239
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 13.8V DC
Current drain RX: 0.8-1.2 A
TX: Max 8 A

Physical

Dimensions (w×h×d): 140 × 40 × 195 mm (5.51 × 1.57 × 7.68 in)
Weight: 1.40 kg (3.1 lbs)
Form factor: Mobile
Manufactured: Between 1990 and 19xx

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 3068
MPN: ICOM-IC-003220E

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-3220E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the ICOM IC-3220E is around:

USD 224 ~ USD 415

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:

Year	Historic price	Condition	Submitted by
