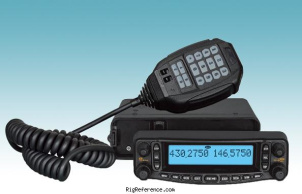

Baojie BJ-9900

General characteristics

HAM bands

2m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

?

Memories

128 channels in 1 bank(s)

Receiver

RX-range

109-136 / 136-174 / 400-470 MHz

Modulations

AM   FM   N-FM

Sensitivity

W-FM: 0.18 µV
FM: 0.22 µV
(12 dB SINAD)

Selectivity

8 kHz (-6 dB), 30 kHz (-60 dB)

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

2 W into 8 ohms

Transmitter

TX-range

136-174 / 400-470 MHz

Modulations

FM   N-FM

RF-output

VHF: 20/40 W, UHF: 20/35 W

Connections

Antenna

N-type

Impedance

50 Ω

Other

-

Electrical

Power requirements

13.8V DC ±15%

Current drain RX

400 mA

TX

8 A max

Physical

Dimensions (w×h×d)

140 × 42 × 168 mm (5.51 × 1.65 × 6.61 in)

Weight

1.20 kg (2.6 lbs)

Form factor

Mobile

Manufactured

Between 2013 and 201x in China

Other features

Usage

Amateur / Ham radio operators

Features + options

DTMF
CTCSS / DCS
Twin RX

Accessories

-

RigReference ID

6004

MPN

BAOJIE-BJ-009900

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baojie BJ-9900. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Baojie BJ-9900 is around:

• USD 219 ~ USD 406

This estimate is based on similar equipment and may not reflect the exact value of this model.

These estimates are based on the following prices:
