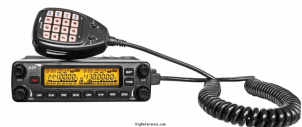

ADI AM-580

General characteristics

HAM bands

2m  70cm

Frequency stability

± 5 p.p.m.

Tuning steps

12.5 / 20 / 25 kHz

Memories

758 channels in 1 bank(s)

Receiver

RX-range

118-174 / 220-260 / 350-390 / 400-490 MHz

Modulations

FM   N-FM

Sensitivity

FM: 0.18 µV
N-FM: 0.22 µV

Selectivity

?

Filters

?

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

>2W@5%

Transmitter

TX-range

136-174 / 400-480 MHz

Modulations

FM   N-FM

RF-output

VHF: 50/25/10/5 W, UHF: 35/25/10/5 W

Connections

Antenna

-

Impedance

50Ω

Other

-

Electrical

Power requirements

13.8V DC

Current drain RX

0.8 A

TX

10 A

Physical

Dimensions (w×h×d)

140 × 40 × 212 mm (5.51 × 1.57 × 8.35 in)

Weight

?

Form factor

Mobile

Manufactured

Between 2013 and 20xx in Taiwan

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

6041

MPN

ADI-AM-000580

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ADI AM-580. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic price data, today's estimated value of the ADI AM-580 in Good condition is around:

• EUR 344
