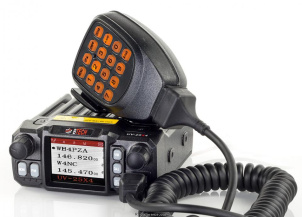

Baofeng UV-25X4

General characteristics

HAM bands

2m  1.25m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

2.5 / 5.0 / 6.25 / 10.0 / 12.5 / 25.0 kHz

Memories

200 channels in 1 bank(s)

Receiver

RX-range

65-108 / 136-174 / 220-260 / 350-390 (EU/Asia) / 400-520 MHz

Modulations

FM   N-FM

Sensitivity

≤ 0.25 μV (wide band)
≤ 0.35 μV (narrow band)

Selectivity

?

Filters

12.5 / 25 kHz

Receiver system

?

IF-frequencies

?

Image rejection

?

Audio output

2 W @ 10%

Transmitter

TX-range

136-174 / 220-260 / 350-390 (EU/Asia) / 400-520 MHz

Modulations

FM   N-FM

RF-output

VHF: 10 / 25 W, UHF: 7 / 20 W

Connections

Antenna

SO-239

Impedance

50Ω

Other

-

Electrical

Power requirements

13.6 V DC ±20%

Current drain RX

?

TX

?

Physical

Dimensions (w×h×d)

98 × 35 × 118 mm (3.86 × 1.38 × 4.65 in)

Weight

408 gr (14.4 oz)

Form factor

Mobile

Manufactured

Between 2017 and 20xx in China

Other features

Usage

Amateur / Ham radio operators

Features + options

Multi-color LCD Display
CTCSS / DCS
PC programmable

Accessories

-

RigReference ID

6158

MPN

BAOFENG-UV-000025X4

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews & stories

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Baofeng UV-25X4. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Baofeng UV-25X4 is around:

• USD 78.00 ~ USD 82.00
• CAD 85.00

Price History Chart

These estimates are based on the following prices:
