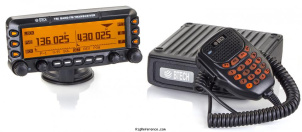

Baofeng UV-50X3

Tri-band analog mobile transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

Find Baofeng UV-50X3 rigs and spare parts on eBay

The Baofeng UV-50X3 is a tri-band analog mobile transceiver. It covers 0.5-1710 kHz / 76-108 / 108-136 / 175-250 / 300-399 / 480-520 MHz receive and 137-174 / 222-225 / 400-480 MHz transmit. Frequency stability is ± 2.5 p.p.m. Tuning steps are selectable from 2.5, 5.0, 6.25, 10.0, 12.5, and 25.0 kHz. Filters are 12.5 / 25 kHz. RF output is VHF: 5 / 10 / 50 W, UHF: 7 / 40 W with an audio output of 2.5 W @ 10%. It has 1 memory bank and 1000 memory channels. Power requirements are 13.8 V DC ±20%. Features include a multi-color LCD display, CTCSS/DCS, and PC programmability. Dimensions are 47 × 145 × 190 mm and the weight is 1.2 kg.

General characteristics

HAM bands: 2m 1.25m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 2.5 / 5.0 / 6.25 / 10.0 / 12.5 / 25.0 kHz
Memories: 1000 channels in 1 bank(s)

Receiver

RX-range: 0.5-1710 kHz / 76-108 / 108-136 / 175-250 / 300-399 / 480-520 MHz
Modulations: AM FM N-FM
Sensitivity: ≤ 0.25 μV (wide band)
≤ 0.35 μV (narrow band)
Selectivity: ?
Filters: 12.5 / 25 kHz
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 2.5 W @ 10%

Transmitter

TX-range: 137-174 / 222-225 / 400-480 MHz
Modulations: FM N-FM
RF-output: VHF: 5 / 10 / 50 W, UHF: 7 / 40 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.8 V DC ±20%
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 145 × 47 × 190 mm (5.71 × 1.85 × 7.48 in)
Weight: 1.20 kg (2.6 lbs)
Form factor: Mobile
Manufactured: Between 2017 and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Multi-color LCD Display
CTCSS / DCS
PC programmable
Accessories: -
RigReference ID: 6160
MPN: BAOFENG-UV-000050X3
