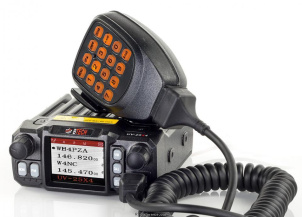

Baofeng UV-25X2

Dual-band analog mobile transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Baofeng UV-25X2 is a Dual-band analog mobile transceiver. It covers 65-108 / 136-174 / 400-520 MHz. The RF output is VHF: 10 / 25 W, UHF: 7 / 20 W. Audio output is 2 W @ 10%. It features a Multi-color LCD Display, CTCSS / DCS and PC programmability. The transceiver has 200 memory channels in 1 memory bank. Dimensions are 35 × 98 × 118 mm. It weighs 408 gr.

General characteristics

HAM bands: 2m 1.25m 70cm
Frequency stability: ± 2.5 p.p.m.
Tuning steps: 2.5 / 5.0 / 6.25 / 10.0 / 12.5 / 25.0 kHz
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 65-108 / 136-174 / 400-520 MHz
Modulations: FM N-FM
Sensitivity: ≤ 0.25 μV (wide band)
≤ 0.35 μV (narrow band)
Selectivity: ?
Filters: 12.5 / 25 kHz
Receiver system: ?
IF-frequencies: ?
Image rejection: ?
Audio output: 2 W @ 10%

Transmitter

TX-range: 136-174 / 400-520 MHz
Modulations: FM N-FM
RF-output: VHF: 10 / 25 W, UHF: 7 / 20 W

Connections

Antenna: SO-239
Impedance: 50Ω
Other: -

Electrical

Power requirements: 13.6 V DC ±20%
Current drain RX: ?
TX: ?

Physical

Dimensions (w×h×d): 98 × 35 × 118 mm (3.86 × 1.38 × 4.65 in)
Weight: 408 gr (14.4 oz)
Form factor: Mobile
Manufactured: Between 2017 and 20xx in China

Other features

Usage: Amateur / Ham radio operators
Features + options: Multi-color LCD Display
CTCSS / DCS
PC programmable
Accessories: -
RigReference ID: 6159
MPN: BAOFENG-UV-000025X2
