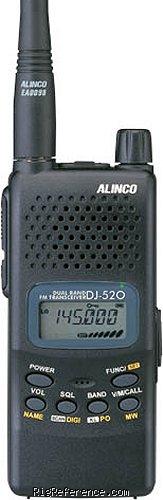

Alinco DJ-520J

General characteristics

HAM bands

2m  70cm

Frequency stability

± 2.5 p.p.m.

Tuning steps

?

Memories

100 channels in 1 bank(s)

Receiver

RX-range

144-146 / 430-440 MHz

Modulations

FM

Sensitivity

15 dBμ (12 dB SINAD)

Selectivity

6 kHz (-6 dB), 15 kHz (-60 dB)

Filters

?

Receiver system

Double conversion superheterodyne

IF-frequencies

1st: 39.15 MHz
2nd: 450 kHz

Image rejection

> 60 dB

Audio output

300mW at 10% THD into 8Ω%

Transmitter

TX-range

144-146 / 430-440 MHz

Modulations

FM

RF-output

4/4.5 W (VHF/UHF)

Connections

Antenna

BNC

Impedance

50Ω

Other

-

Electrical

Power requirements

6-16V DC

Current drain RX

26-80 mA

TX

Max 1.8 A

Physical

Dimensions (w×h×d)

56 × 124 × 37 mm (2.20 × 4.88 × 1.46 in) with standard battery

Weight

280 gr (9.9 oz) with standard battery

Form factor

Handheld

Manufactured

Between 2004 and 200x in Japan

Other features

Usage

Amateur / Ham radio operators

Features + options

10F3 digital voice option (EJ-47U)
CTCSS / DCS

Accessories

-

RigReference ID

2254

MPN

ALINCO-DJ-000520J
