General characteristics

HAM bands
?
Frequency stability
?
Tuning steps
?

Receiver

RX-range
0.531-10 / 76.1-90 / 108-170 / 380-470 MHz
Modulations
AM   FM   W-FM
Sensitivity
?
Selectivity
?
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
60 dB
Audio output
?

Transmitter

TX-range
144-146 /430-440 MHz
Modulations
FM
RF-Output
High: 300-500 mW (depending on voltage), Low: ? mW

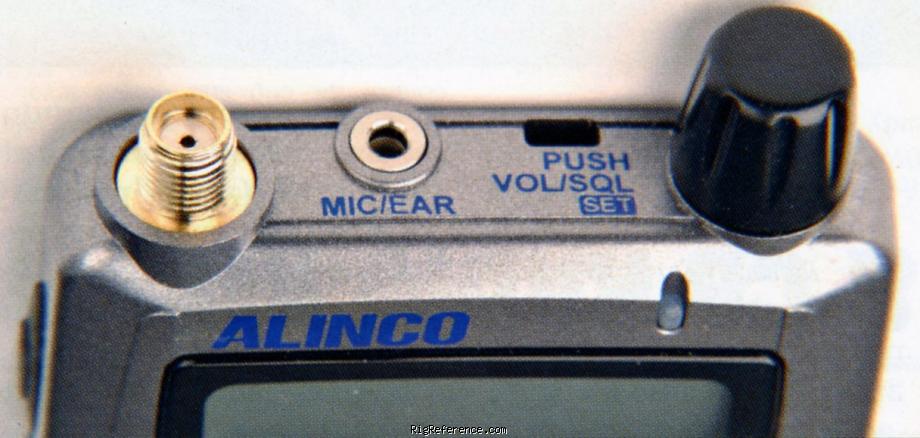

Connections

Antenna
SMA
Impedance
50 Ω
Other
-

Electrical

Power requirements
3.7-6V DC
Current drain RX
19-70 mA
TX
Max 250-320 mA

Physical

Manufactured
Between 2004 and 200x in Japan
Dimensions (w×h×d)
58 × 96 × 15 mm (2.28 × 3.78 × 0.59 in)
Weight
102 gr (3.6 oz)
Form factor
Handheld

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?
MPN
ALINCO-DJ-C000007

Manuals, diagrams and brochures

Alinco DJ-C7T/E Instruction manual submitted by RigReference

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-C7. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DJ-C7 is around:

  • EUR 63.00 ~ EUR 112.00

These estimates are based on the following prices: (see all 2 prices)

Year Historic price Condition Submitted by
2013 EUR 157.00 Used / Good thiecom.de
2010 EUR 159.00 New / Good thiecom.de
