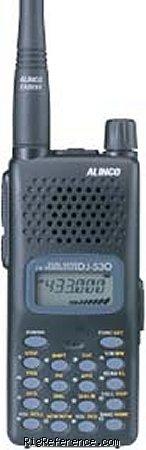

Alinco DJ-530J

Handheld VHF/UHF Transceiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Alinco DJ-530J is a handheld VHF/UHF transceiver. It covers 144-146 / 430-440 MHz for both receive and transmit. Image rejection is 60 dB. RF output is selectable between High: 5W/5W and Low: 800mW/800mW. The radio features a keyboard and supports the 10F3 digital voice option (EJ-47U). It requires 6-16V DC power. Current drain in receive is 28-74 mA and max 1.8A in transmit. Dimensions are 97 × 58 × 37 mm.

General characteristics

HAM bands: 2m 70cm
Frequency stability: ?
Tuning steps: ?
Memories: ?

Receiver

RX-range: 144-146 / 430-440 MHz
Modulations: FM
Sensitivity: ?
Selectivity: 6 kHz (-6 dB), 15 kHz (-60 dB)
Filters: ?
Receiver system: ?
IF-frequencies: ?
Image rejection: 60 dB
Audio output: ?

Transmitter

TX-range: 144-146 / 430-440 MHz
Modulations: FM
RF-output: High: 5/5 W, Low: 800/800 mW

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 6-16V DC
Current drain RX: 28-74 mA
TX: Max 1.8 A

Physical

Dimensions (w×h×d): 58 × 97 × 37 mm (2.28 × 3.82 × 1.46 in)
Weight: 310 gr (10.9 oz)
Form factor: Handheld
Manufactured: Between 2004 and 200x in Japan

Other features

Usage: Amateur / Ham radio operators
Features + options: 10F3 digital voice option (EJ-47U). Keyboard
Accessories: -
RigReference ID: 2255
MPN: ALINCO-DJ-000530J

We do our best to be accurate, but if you've spotted something wrong or incomplete, please let us know!

Manuals, diagrams and brochures

: No documents available for this particular model.

: Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-530J. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Transceiver equipment, the estimated value of the Alinco DJ-530J is around:

USD 171 ~ USD 318

This estimate is based on similar equipment and may not reflect the exact value of this model.
