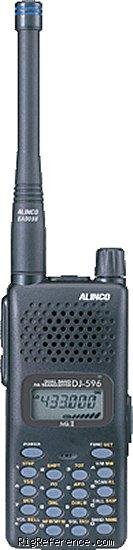

Alinco DJ-596E MKII

Handheld VHF/UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find Alinco DJ-596E MKII rigs and spare parts on eBay Find the Alinco DJ-596E MKII on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
144-146 / 430-440 MHz
TX-range
144-146 / 430-440 MHz
HAM bands
?
Stability
?
Tuning steps
5 / 10 / 12.5 / 15 / 20 / 25 / 30 kHz
Filters
?

Receiver

Modulations
FM   N-FM
Sensitivity
Less than -15 dBu (-12 dB SINAD)
Selectivity
12 kHz or more (-6 dB), 30 kHz or less (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM   N-FM
RF-Output
High: 2.5-5 / 2.5-4.5 W (depending on voltage), Low: 0.8/0.8 W

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
6-15V DC
Current drain RX
75 mA (squelched)
TX
Max 1.4 A

Physical

Dimensions (w×h×d)
56 × 124 × 37 mm (2.20 × 4.88 × 1.46 in)
Weight
310 gr (10.9 oz) with battery and antenna
Form factor
Handheld
Manufactured
Between 2003 and 200x
MPN
ALINCO-DJ-000596E-MKII

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS, DCS, DTMF encode. Experimental mosquito-repel feature. 10F3 digital voice option (EJ-47U)
Accessories
?

Manuals, diagrams and brochures

Alinco DJ-596T/E Mk II Instruction manual submitted by RigReference
Alinco DJ-596 Service manual submitted by RigReference

Upload relevant documents

Show other documents.
Find the Alinco DJ-596E MKII user manuals on eBay #ad

Reviews & stories

Do you know this rig? Tell us something about it!

What's it worth

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the Alinco DJ-596E MKII. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the Alinco DJ-596E MKII might be around:

  • EUR 79.00
Year Historic price Condition Submitted by
2010 EUR 149.00 New / Good thiecom.de
2013 EUR 149.00 Used / Good thiecom.de
2018 EUR 80.00 Used / Good Jens
