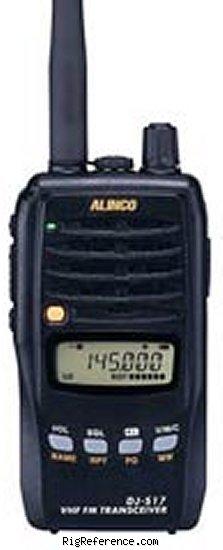

The Alinco DJ-S17E is a handheld VHF transceiver. It covers 130-174 MHz for receive and 144-146 MHz for transmit (Europe). The receiver system is double conversion superheterodyne with IF frequencies of 1st: 21.7 MHz and 2nd: 450 KHz. RF output is selectable between High: 5 W (@ 13.8 VDC) and Low: 0.8 W. It features 1 memory bank with 200 channels, CTCSS and is submersible. Dimensions are 110 × 58 × 36 mm.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 30 kHz
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 130-174 MHz
- Modulations
- FM
- Sensitivity
- 0.2 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 26 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 21.7 MHz
2nd: 450 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz (Europe)
- Modulations
- FM
- RF-output
- High: 5 W (@ 13.8 VDC), Low: 0.8 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC (EBP-65 Ni-MH pack) or 7-16V DC external
- Current drain RX
- 25-250 mA
- TX
- Max 1.4 A
Physical
- Dimensions (w×h×d)
- 58 × 110 × 36 mm (2.28 × 4.33 × 1.42 in)
- Weight
- 280 gr (9.9 oz) with antenna and EBP-65
- Form factor
- Handheld
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. Submersible.
- Accessories
- -
- RigReference ID
- 2278
- MPN
- ALINCO-DJ-S000017E
