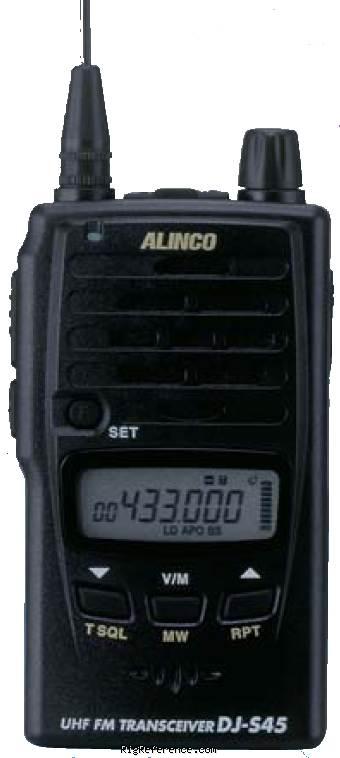

Alinco DJ-S45E

Handheld UHF Transceiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Frequency range

RX-range
420-474 MHz
TX-range
430-440 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
-15 dBu or better (12 dB SINAD)
Selectivity
6 kHz (-6 dB), 14 kHz (-60 dB)
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
High: 2 W (6 VDC), 400 mW (2.4 VDC), Low: 500 mW (6 VDC), 150 mW (2.4 VDC)

Connections

Antenna
SMA
Impedance
50 Ω

Electrical

Power requirements
2R6/AA or Li-Ion pack. Also 3-6V DC external
Current drain RX
?
TX
0.45-1 A

Physical

Dimensions (w×h×d)
57 × 98 × 28 mm (2.24 × 3.86 × 1.10 in)
Weight
162 gr (5.7 oz) with batteries and antenna
Form factor
Handheld
Manufactured
Between 2006 and 200x
MPN
ALINCO-DJ-S000045E

Other features

Memories
100 channels in 1 bank(s)
Usage
Amateur / Ham radio operators
Features + options
CTCSS. PC-programmable.
Accessories
?

Manuals, diagrams and brochures

Alinco DJ-S45 CQ/T/E Instruction manual submitted by RigReference
Alinco DJ-S45CQ Service manual submitted by RigReference

Upload relevant documents

Show other documents.
Find the Alinco DJ-S45E user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-S45E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Alinco DJ-S45E is around:

  • EUR 59.00 ~ EUR 97.00
Year Historic price Condition Submitted by
2013 EUR 119.00 Used / Good thiecom.de
2010 EUR 119.00 New / Good thiecom.de
