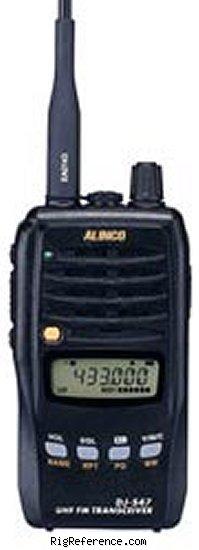

The Alinco DJ-S47E is a handheld UHF transceiver. It covers 410-470 MHz for receive and 430-440 MHz (Europe) for transmit. The receiver system is double conversion superheterodyne with IF frequencies of 1st: 38.85 MHz and 2nd: 450 KHz. RF output is High: 5 W (@ 13.8 VDC), Low: 0.8 W. It features CTCSS and is submersible. The DJ-S47E has 1 memory bank with 200 channels. Power requirements are 7.2V DC (EBP-65 Ni-MH pack) or 7-16V DC external. Dimensions are 110 × 58 × 36 mm.
General characteristics
- HAM bands
- 70cm
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 30 kHz
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 410-470 MHz
- Modulations
- FM
- Sensitivity
- 0.2 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 26 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 38.85 MHz
2nd: 450 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 430-440 MHz (Europe)
- Modulations
- FM
- RF-output
- High: 5 W (@ 13.8 VDC), Low: 0.8 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC (EBP-65 Ni-MH pack) or 7-16V DC external
- Current drain RX
- 25-250 mA
- TX
- Max 1.4 A
Physical
- Dimensions (w×h×d)
- 58 × 110 × 36 mm (2.28 × 4.33 × 1.42 in)
- Weight
- 280 gr (9.9 oz) with antenna and EBP-65
- Form factor
- Handheld
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. Submersible.
- Accessories
- -
- RigReference ID
- 2285
- MPN
- ALINCO-DJ-S000047E
Manuals, diagrams and brochures
- Alinco DJ-S17/S47 Instruction manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-S47E. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DJ-S47E in Good condition is around:
- EUR 119
These estimates are based on the following prices:
