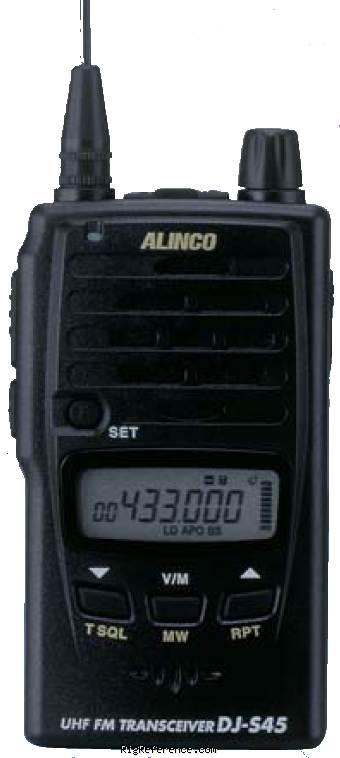

The Alinco DJ-S45T is a handheld UHF transceiver. It covers 420-474 MHz in receive and 420-450 MHz in transmit. RF output power is selectable: High (2 W at 6 VDC, 400 mW at 2.4 VDC) or Low (500 mW at 6 VDC, 150 mW at 2.4 VDC). It has 1 memory bank with 100 channels and features CTCSS and PC programmability. The transceiver weighs 162 gr with batteries and antenna. Dimensions are 98 × 57 × 28 mm. Power requirements are 2R6/AA or Li-Ion pack, as well as 3-6V DC external. Current drain in transmit is 0.45-1 A.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 100 channels in 1 bank(s)
Receiver
- RX-range
- 420-474 MHz
- Modulations
- FM
- Sensitivity
- -15 dBu or better (12 dB SINAD)
- Selectivity
- 6 kHz (-6 dB), 14 kHz (-60 dB)
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 420-450 MHz
- Modulations
- FM
- RF-output
- High: 2 W (6 VDC), 400 mW (2.4 VDC), Low: 500 mW (6 VDC), 150 mW (2.4 VDC)
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 2R6/AA or Li-Ion pack. Also 3-6V DC external
- Current drain RX
- ?
- TX
- 0.45-1 A
Physical
- Dimensions (w×h×d)
- 57 × 98 × 28 mm (2.24 × 3.86 × 1.10 in)
- Weight
- 162 gr (5.7 oz) with batteries and antenna
- Form factor
- Handheld
- Manufactured
- Between 2006 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. PC-programmable.
- Accessories
- -
- RigReference ID
- 2284
- MPN
- ALINCO-DJ-S000045T
Manuals, diagrams and brochures
- Alinco DJ-S45 CQ/T/E Instruction manual PDF - Unknown size, submitted by RigReference
- Alinco DJ-S45CQ Service manual PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-S45T. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Alinco DJ-S45T is around:
- USD 232 ~ USD 431
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
