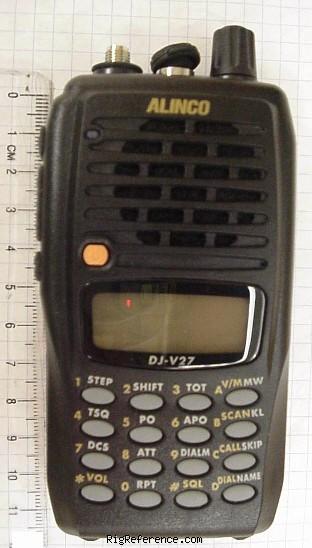

The Alinco DJ-V27 is a handheld VHF transceiver. It covers 216-250 MHz for reception and 222-225 MHz for transmission. The receiver system is double conversion superheterodyne with IF frequencies of 1st: 38.85 MHz, 2nd: 450 KHz. RF output is High: 5 W (@ 13.8 VDC), Low: 0.8 W. It features CTCSS and is submersible. The radio has 1 memory bank with 200 channels. Power requirements are 7.2V DC (EBP-65 Ni-MH pack) or 7-16V DC external. Dimensions are 110 × 58 × 36 mm. Weight is 280 gr with antenna and EBP-65. Current drain is 25-250 mA in receive mode and max 1.4 A in transmit mode.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- 5 / 10 / 12.5 / 15 / 20 / 25 / 30 kHz
- Memories
- 200 channels in 1 bank(s)
Receiver
- RX-range
- 216-250 MHz
- Modulations
- FM
- Sensitivity
- 0.2 µV (12 dB SINAD)
- Selectivity
- 12 kHz (-6 dB), 26 kHz (-60 dB)
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- 1st: 38.85 MHz
2nd: 450 KHz - Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 222-225 MHz
- Modulations
- FM
- RF-output
- High: 5 W (@ 13.8 VDC), Low: 0.8 W
Connections
- Antenna
- SMA
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 7.2V DC (EBP-65 Ni-MH pack) or 7-16V DC external
- Current drain RX
- 25-250 mA
- TX
- Max 1.4 A
Physical
- Dimensions (w×h×d)
- 58 × 110 × 36 mm (2.28 × 4.33 × 1.42 in)
- Weight
- 280 gr (9.9 oz) with antenna and EBP-65
- Form factor
- Handheld
- Manufactured
- Between 2007 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- CTCSS. Submersible.
- Accessories
- -
- RigReference ID
- 2289
- MPN
- ALINCO-DJ-V000027
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Alinco DJ-V27. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Alinco DJ-V27 in Good condition is around:
- USD 80
These estimates are based on the following prices:
