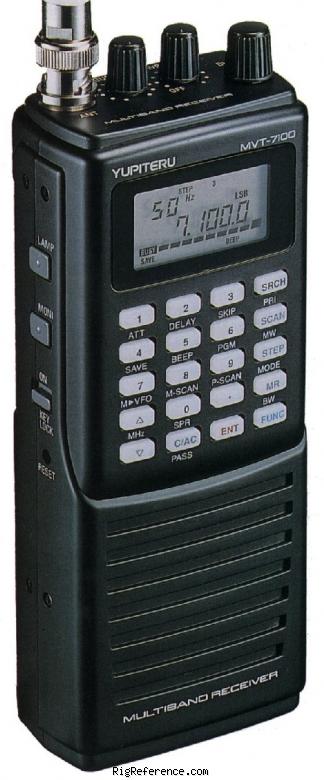

The Yupiteru MVT-7100 is regarded as one of the best hand-held scanners from the 1990s (and beyond). It has a wide reception range, 1000 memories it can scan, and is very sensitive (better than 1 µV on most ranges). It can be used for overhearing police and fire communications, phones, ham radio, air, space, everything. It is unfortunate that a lot of these transmissions have ceased: police are digital, 31 MHz phones are obsolete, CB is rather inactive, 430 MHz car phones are no longer there.

General characteristics

HAM bands
160m  80m  60m  40m  30m (WARC)  20m  17m (WARC)  15m  12m (WARC)  11m (CB)  6m  2m  1.25m  70cm  33cm  23cm  10m  4m
Frequency stability
?
Tuning steps
0.05 / 0.1 / 1 / 5 / 6.25 / 9 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz
Memories
1000 channels in 10 bank(s) @ 30 channels/second

Receiver

RX-range
0.53-1650 MHz (tunes down to 0.1 kHz)
Modulations
AM   FM   W-FM   CW   SSB
Sensitivity
AM (10 dB S/N)
0.53-2 MHz: 10 µV
2-30 MHz: 1.5 µV
30-1000 MHz: 0.5 µV
FM (12 dB SINAD)
2-30 MHz: 1.5 µV
30-1000 MHz: 0.5 µV
1000-1300 MHz: 1 µV
W-FM (12 dB SINAD)
30-1000 MHz: 0.75 µV
SSB/CW (10 dB S/N)
2-30 MHz: 1 µV
30-1000 MHz: 0.5 µV
Selectivity
?
Filters
?
Receiver system
Superheterodyne
IF-frequencies
1st: 592.3 / 227.5 MHz
2nd: 45.1 MHz
3rd: ?
Image rejection
?
Audio output
100 mW

Connections

Antenna
BNC
Impedance
50Ω
Other
-

Electrical

Power requirements
4 × AA/LR6 or external 12 V DC
Current drain RX
10-140 mA
TX
-

Physical

Dimensions (w×h×d)
64 × 155 × 38 mm (2.52 × 6.10 × 1.50 in)
Weight
320 gr (11.3 oz)
Form factor
Handheld
Manufactured
Between 1993 and 19xx in Japan

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
4408
MPN
YUPITERU-MVT-007100

Manuals, diagrams and brochures

Yupiteru MVT-7100 User Guide PDF - Unknown size, submitted by RigReference

Upload relevant documents

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Yupiteru MVT-7100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Yupiteru MVT-7100 is around:

  • EUR 6.00 ~ EUR 8.00
  • USD 76.00 ~ USD 80.00
  • GBP 49.00 ~ GBP -99.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2020 USD 80.99 Used / Okay eBay
2019 GBP -100.00 Used / Good kellymay
2014 USD 200.00 Used / Good Terry Johnson
2014 EUR 10.00 Used / Good theodeurne
2010 GBP 125.00 Used / Mint eBay
