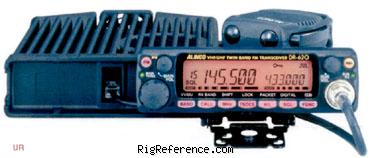

The Alinco DR-620D is a Mobile VHF/UHF Transceiver. It covers 76-108 / 144-146 / 430-440 MHz for reception and 144-146 / 430-440 MHz for transmission. RF output power is High: 20/20 W, Medium: 10/10 W, Low: 2/2 W. It features 1 memory bank with 202 channels. The DR-620D weighs 1 kg and has a current drain of 400-600 mA while receiving and a maximum of 8 A while transmitting. Dimensions are 40 × 140 × 185 mm.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 202 channels in 1 bank(s)
Receiver
- RX-range
- 76-108 / 144-146 / 430-440 MHz
- Modulations
- AM FM N-FM W-FM
- Sensitivity
- Main band: 0.2 µV or better (-12 dB SINAD)
Sub band: 0.25 µV or better (-12 dB SINAD) - Selectivity
- FM, -6 dB: 12 kHz or more, -60 dB: 28 kHz or less
N-FM, -6 dB: 6 kHz or more, -60 dB: 14 kHz or less - Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 / 430-440 MHz
- Modulations
- FM N-FM
- RF-output
- High: 20/20 W, Medium: 10/10 W, Low: 2/2 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC +/- 15%
- Current drain RX
- 400-600 mA
- TX
- Max 8 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 185 mm (5.51 × 1.57 × 7.28 in)
- Weight
- 1,000 gr (2.2 lbs)
- Form factor
- Mobile
- Manufactured
- Between 2002 and 200x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Detachable control head. Theft alarm. CTCSS & DCS. Twin RX. 1200/9600 bd packet and GPS option (EJ-50U). 10F3 digital voice board (EJ-47U) option (requires at least two similarly equipped radios)
- Accessories
- -
- RigReference ID
- 2334
- MPN
- ALINCO-DR-000620D
