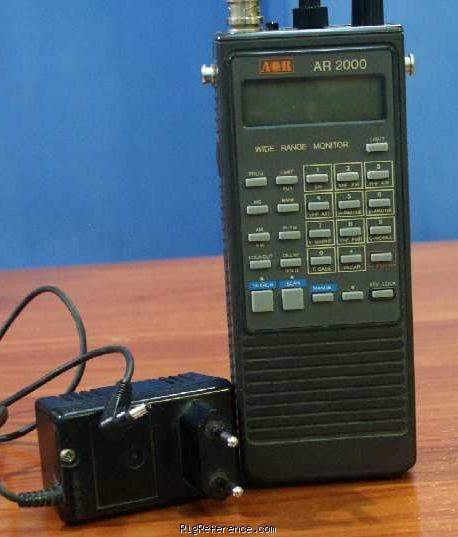

AOR AR-2000 Handheld HF/VHF/UHF Scanner / receiver

 (4.0/5)  Add a story   View all stories (1)   Add to my shack



Login or Register to upload images

This rig was also sold as the Camnis HSC-010 and Trident TR-1200.

Frequency range

RX-range
0.5-1300 MHz
TX-range
-
HAM bands
-
Stability
-
Tuning steps
user-selectable in any steps of 5 kHz and 12.5 kHz up to 995 kHz kHz
Filters
-

Receiver

Modulations
AM   FM   W-FM
Sensitivity
Low Band AM: 10dB S/N 0.7 - 1.0µV
N-FM: 12dB Sinad 0.5µV
W-FM: 20dB S/N 1.0µV
High band : N-FM: 12dB Sinad 0.7 - 1.0µV
Selectivity
-
Receiver system
-
IF-frequencies
-
Image rejection
-
Audio output
100 mW

Transmitter

Modulations
-
RF-Output
-

Connections

Antenna
BNC
Impedance
50 Ω

Electrical

Power requirements
4.8-6V DC (4R6/AA) or 11-15V DC external
Current drain RX
80-100 mA
TX
-

Physical

Dimensions (w×h×d)
65 × 170 × 35 mm (2.56 × 6.69 × 1.38 in)
Weight
300 gr (10.6 oz) without batteries
Form factor
Handheld
Manufactured
Between 199x and 1994
MPN

Other features

Memories
1000 channels in 10 bank(s) @ 20 channels/second
Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-

Manuals, diagrams and brochures

AOR AR-2000 Instruction manual submitted by RigReference

Upload relevant documents

Show other documents.

Stories & reviews

Very nice, considering its age

AOR AR-2000, Handheld HF/VHF/UHF Scanner / receiver

The AOR AR-2000 is a very nice, well built scanner. Comes with 1000 memory channels and covers all bands from 500 kHz up to 1.3 GHz. Sensitivity isn't super, but very usable nevertheless. Used it as a backup receiver for a couple of months, very satisfied.

Written by elmer on Dec 6, 2009

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2009
EUR 35.00

What is it worth?

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the current value of the AOR AR-2000. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's value of the AOR AR-2000 might be around:

  • EUR 13.00
Price Condition Year User
EUR 35.00 Used / Good 2009 elmer
