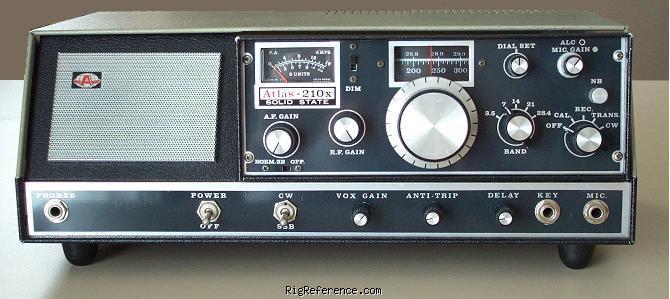

The Atlas 210X is a 10-80 m transceiver. Maximum RF output is 100 W. Power requirements are 13.8V DC. Current drain in receive mode is 300-500 mA and maximum current drain in transmit mode is 16 A. Dimensions are 90 × 250 × 250 mm.
General characteristics
- HAM bands
- 80m 40m 20m 15m 10m
- Frequency stability
- ?
- Tuning steps
- Continuous
- Memories
- None
Receiver
- RX-range
- 10-80 m
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 10-80 m
- Modulations
- CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-500 mA
- TX
- Max 16 A
Physical
- Dimensions (w×h×d)
- 250 × 90 × 250 mm (9.84 × 3.54 × 9.84 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 197x and 197x
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2379
- MPN
- ATLAS-000210X
Manuals, diagrams and brochures
- Atlas 210x / 215x Installation, Operation and Maintenance Manual PDF - 2.82 MB, submitted by Gerd
- Upload relevant documents
Reviews
| Rating | Title | Submitted |
|---|---|---|
| Sehr einfach zu bedienendes KW-Mobilgerät mit gutem Wirkungsgrad | 9 years ago by Benny |
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Atlas 210X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Atlas 210X in Good condition is around:
- USD 100
