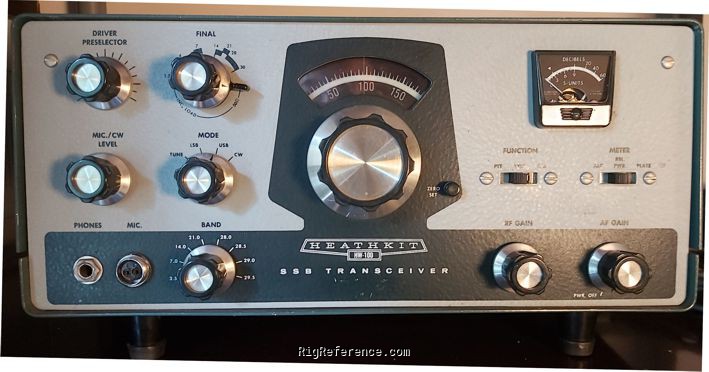

General characteristics

HAM bands
80m  40m  20m  15m  10m
Frequency stability
< 100 Hz / hour after 30 minutes warm-up
Tuning steps
Continuous
Memories
None

Receiver

RX-range
10-80 m
Modulations
CW   USB   LSB
Sensitivity
≤ 0.5 µV for 10 dB S/N
Selectivity
2.1 kHz @ -6 dB / 7 kHz @ -60 dB (3.395 MHz filter)
Filters
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
2 W @ 10% distortion

Transmitter

TX-range
10-80 m
Modulations
CW   USB   LSB
RF-output
100 W (80-15m) 80 W (10m)

Connections

Antenna
-
Impedance
50-75Ω
Other
-

Electrical

Power requirements
External high-voltage power supply
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
380 × 163 × 335 mm (14.96 × 6.42 × 13.19 in)
Weight
8.50 kg (18.8 lbs)
Form factor
Base Station
Manufactured
Between 1968 and 197x in USA

Other features

Usage
Amateur / Ham radio operators
Features + options
-
Accessories
-
RigReference ID
6589
MPN
HEATHKIT-HW-000100

Manuals, diagrams and brochures

Heathkit HW-100 Assembly Manual PDF - 14.04 MB, submitted by Wim

Upload relevant documents

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Heathkit HW-100. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Heathkit HW-100 is around:

  • USD 3.00

Price History Chart

These estimates are based on the following prices:

Year Historic price Condition Submitted by
2000 USD 100.00 New / Good Vasile Georgescu
