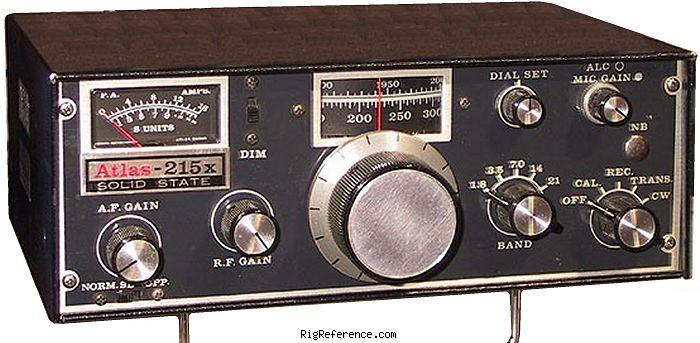

The Atlas 215X is a transceiver covering 15-160 m for both receive and transmit. RF output is 100 W. It requires 13.8V DC power. Current drain is 300-500 mA when receiving and a maximum of 16 A when transmitting. Dimensions are 90 × 250 × 250 mm.
General characteristics
- HAM bands
- ?
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 15-160 m
- Modulations
- CW SSB
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- ?
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 15-160 m
- Modulations
- CW SSB
- RF-output
- 100 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- 300-500 mA
- TX
- Max 16 A
Physical
- Dimensions (w×h×d)
- 250 × 90 × 250 mm (9.84 × 3.54 × 9.84 in)
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 197x and 19xx
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2380
- MPN
- ATLAS-000215X
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Atlas 215X. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on similar Transceiver equipment, the estimated value of the Atlas 215X is around:
- USD 210 ~ USD 390
This estimate is based on similar equipment and may not reflect the exact value of this model.
These estimates are based on the following prices:
