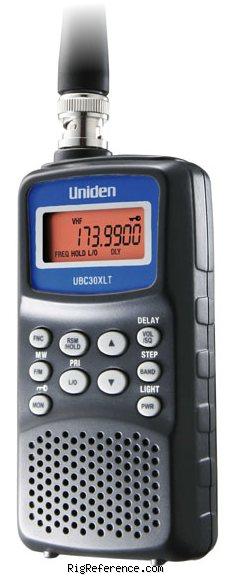

Uniden-Bearcat UBC30XLT

Handheld VHF Scanner / receiver

Specs Manuals (0) Reviews (0) Prices (0) Compare

The Uniden-Bearcat UBC30XLT is a handheld VHF scanner/receiver. It covers 87.5-107.9 / 108-174 MHz and has a double conversion superheterodyne receiver system. Its first IF frequency is 51.750 MHz, and its second IF frequency is 450 kHz. Image rejection is 70 dB. The UBC30XLT features 200 memory channels in one bank. It weighs 100 gr (without antenna & battery) and requires 3.6-4.5V DC (3R6/AA). Dimensions are 104 × 53 × 28 mm.

General characteristics

HAM bands: ?
Frequency stability: ?
Tuning steps: 5 / 6.25 / 8.33 / 10 / 12.5 / 20 / 25 / 50 / 100 kHz
Memories: 200 channels in 1 bank(s)

Receiver

RX-range: 87.5-107.9 / 108-174 MHz
Modulations: AM FM W-FM
Sensitivity: AM: 0.4 µV
FM: 0.3 µV (12 dB SINAD)
W-FM: 0.9 µV (12 dB SINAD)
Selectivity: ?
Filters: ?
Receiver system: Double conversion superheterodyne
IF-frequencies: 1st: 51.750 MHz
2nd: 450 kHz
Image rejection: 70 dB
Audio output: ?

Connections

Antenna: BNC
Impedance: 50 Ω
Other: -

Electrical

Power requirements: 3.6-4.5V DC (3R6/AA)
Current drain RX: 36-160 mA
TX: -

Physical

Dimensions (w×h×d): 53 × 104 × 28 mm (2.09 × 4.09 × 1.10 in)
Weight: 100 gr (3.5 oz) without antennna & battery
Form factor: Handheld
Manufactured: Between 200x and 200x

Other features

Usage: Amateur / Ham radio operators
Features + options: -
Accessories: -
RigReference ID: 2465
MPN: UNIDEN-BEARCAT-UBC000030XLT
