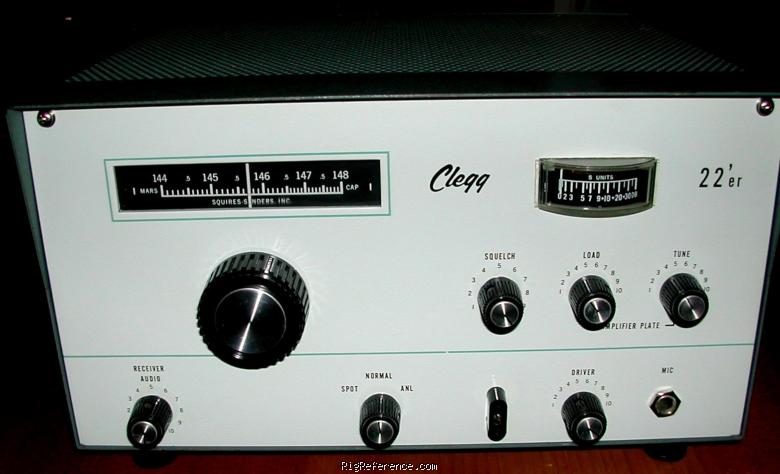

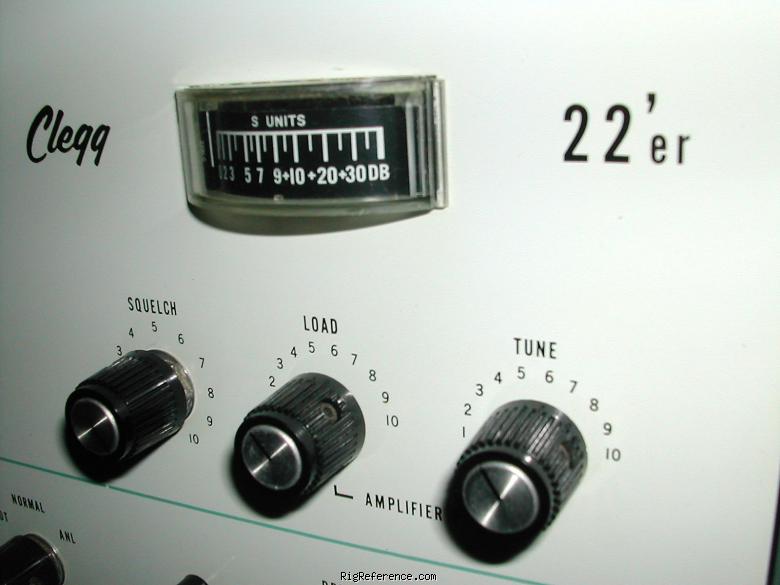

The Clegg 22'er is a desktop VHF transceiver. It covers 143.8-148.2 MHz for both receive and transmit. The transmitter utilizes XTAL for frequency control with an optional VFO. RF output is 20 W (input) and audio output is through an internal speaker. Power requirements are 13.8V DC or mains.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- Rx: Continuous, Tx: XTAL
- Memories
- None
Receiver
- RX-range
- 143.8-148.2 MHz
- Modulations
- AM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- XTAL for TX (VFO option) 12 tubes
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 143.8-148.2 MHz
- Modulations
- AM
- RF-output
- 20 W (input)
Connections
- Antenna
- -
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- ?
- TX
- ?
Physical
- Dimensions (w×h×d)
- ?
- Weight
- ?
- Form factor
- Base Station
- Manufactured
- Between 1965 and 196x in USA
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 2483
- MPN
- CLEGG-000022'ER
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Clegg 22'er. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the Clegg 22'er in Good condition is around:
- USD 180
These estimates are based on the following prices:
