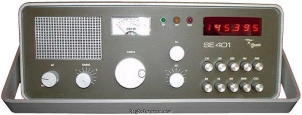

The Braun SE-401 is a desktop VHF transceiver. It covers 144-146 MHz for both reception and transmission. The RF output power is 10 W. It requires 13.8V DC or mains power. Dimensions are 117 × 307 × 260 mm. Current drain is Max 1.4 A in receive mode and Max 2.9 A in transmit mode.
General characteristics
- HAM bands
- 2m
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- ?
Receiver
- RX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- Sensitivity
- FM: 0.15 µV (10 dB)
SSB: 0.06 µV (10 dB) - Selectivity
- ?
- Filters
- ?
- Receiver system
- Single conversion superheterodyne
- IF-frequencies
- 10.7 MHz
- Image rejection
- ?
- Audio output
- ?
Transmitter
- TX-range
- 144-146 MHz
- Modulations
- FM CW SSB
- RF-output
- 10 W
Connections
- Antenna
- SO-239
- Impedance
- 50 Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC or mains
- Current drain RX
- Max 1.4 A
- TX
- Max 2.9 A
Physical
- Dimensions (w×h×d)
- 307 × 117 × 260 mm (12.09 × 4.61 × 10.24 in)
- Weight
- 7.30 kg (16.1 lbs)
- Form factor
- Base Station
- Manufactured
- Between 1975 and 197x in West Germany
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- -
- Accessories
- -
- RigReference ID
- 4574
- MPN
- BRAUN-SE-000401
Manuals, diagrams and brochures
-
No documents available for this particular model.
- Upload relevant documents
