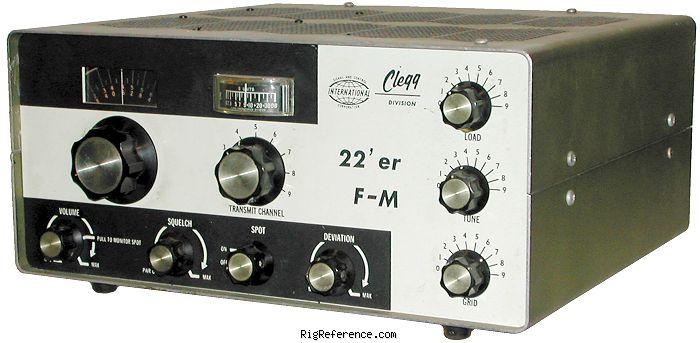

Clegg 22'er FM

Desktop VHF Transceiver

View all reviews (1) Add a review Add to my shack



Login or Register to upload images

Find Clegg 22'er FM rigs and spare parts on eBay Find the Clegg 22'er FM on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
146-147 MHz
TX-range
146-147 MHz
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
FM
Sensitivity
?
Selectivity
?
Receiver system
XTAL
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
FM
RF-Output
60 W

Connections

Antenna
-
Impedance
50 Ω

Electrical

Power requirements
13.8V DC or mains
Current drain RX
?
TX
?

Physical

Dimensions (w×h×d)
?
Weight
?
Form factor
Base Station
Manufactured
Between 19xx and 19xx
MPN
CLEGG-000022'ER-FM

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Clegg 22'er FM user manuals on eBay #ad

Reviews & stories

Clegg 22'er FM DE KG5N

Clegg 22'er FM, Desktop VHF Transceiver

Purchased Oct 2019. Transmitter (4 tubes) working and receiver (solid state) unknown for $40. There are two versions of this radio where one covers the entire 2 meter band (series 24) and the other the top two MHz. I have the series 25 covering 146-148 MHz. A weekend of troubleshooting yielded a fully functional radio. On the air audio reports were favorable with a strong 28 watt transmitter output. I notice some internet info claiming a 60 watt output but not true. That is the input power to the final transmitter tube not the output. Receive audio also excellent and much richer than many of the new imported radios. User manual is useful if you are not familiar with tuning a tube based transmitter to an antenna.

Written by KG5N on Oct 13, 2019

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Good condition in 2019
USD 40.00

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Clegg 22'er FM. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Clegg 22'er FM is around:

  • USD 39.00
Year Historic price Condition Submitted by
2019 USD 40.00 Used / Good KG5N
2010 USD 76.00 Used / Good eBay
