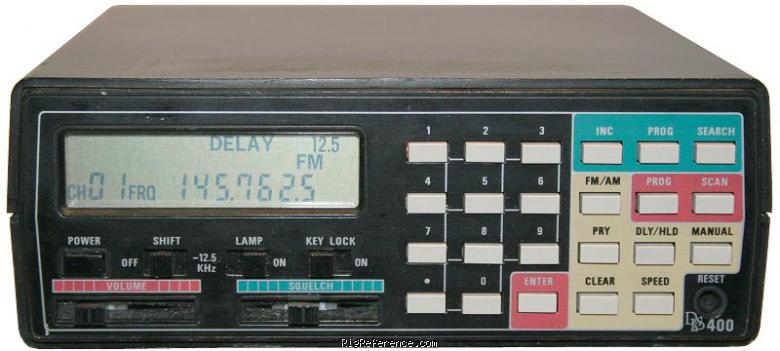

DLS 400

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

12.5 / 25 kHz

Memories

20 channels in 1 bank(s) @ 15 channels/second

Receiver

RX-range

60-90 / 118-136 / 138-174 / 406-512 / 800-999 MHz

Modulations

AM   FM

Sensitivity

AM µVHF: 1 µV (20 dB S/N)
FM µVHF: 0.5 µV (12 dB SINAD)
FM UHF: 1 µV (12 dB SINAD)

Selectivity

?

Filters

?

Receiver system

Double-conversion superheterodyne

IF-frequencies

1st: 10.7 MHz
2nd: 455 KHz - Ceramic filter: Murata CFG455E

Image rejection

?

Audio output

?

Connections

Antenna

TV-antenne

Impedance

50/75 Ω

Other

-

Electrical

Power requirements

4.8V DC (4R6/AA NiCd cells) or 13.2V DC external

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

152 × 55 × 180 mm (5.98 × 2.17 × 7.09 in)

Weight

700 gr (1.5 lbs)

Form factor

Mobile

Manufactured

Between 198x and 198x in Japan, by AOR (discontinued)

Other features

Usage

Amateur / Ham radio operators

Features + options

-

Accessories

-

RigReference ID

2559

MPN

DLS-000400

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used DLS 400. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Scanner / receiver equipment, the estimated value of the DLS 400 is around:

• USD 120 ~ USD 222

This estimate is based on similar equipment and may not reflect the exact value of this model.
