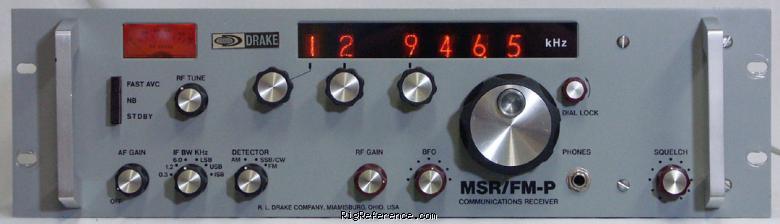

Drake MSR-1

General characteristics

HAM bands

?

Frequency stability

?

Tuning steps

?

Memories

?

Receiver

RX-range

0.01-30 MHz

Modulations

AM   SSB   USB   ISB

Sensitivity

?

Selectivity

?

Filters

?

Receiver system

Double / triple conversion

IF-frequencies

?

Image rejection

?

Audio output

2 W

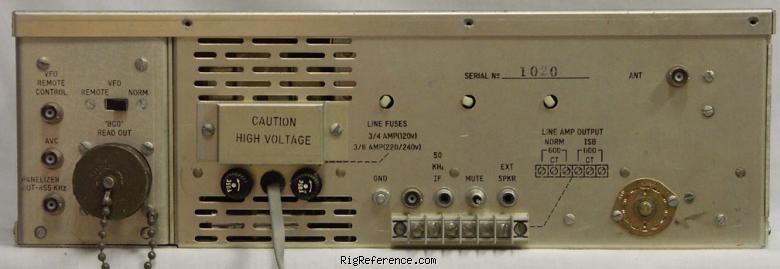

Connections

Antenna

SO-239

Impedance

50/500Ω

Other

-

Electrical

Power requirements

Mains (120/240 V AC)

Current drain RX

?

TX

-

Physical

Dimensions (w×h×d)

330 × 140 × 380 mm (12.99 × 5.51 × 14.96 in)

Weight

7.70 kg (17.0 lbs)

Form factor

Base Station

Manufactured

Between 1971 and 19xx

Other features

Usage

Marine / Navy

Features + options

Nixie tube display
BFO
Noise blanker

Accessories

-

RigReference ID

2575

MPN

DRAKE-MSR-000001

Manuals, diagrams and brochures

No documents available for this particular model.



Upload relevant documents

Reviews

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Drake MSR-1. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on similar Receiver equipment, the estimated value of the Drake MSR-1 is around:

• USD 159 ~ USD 295

This estimate is based on similar equipment and may not reflect the exact value of this model.
