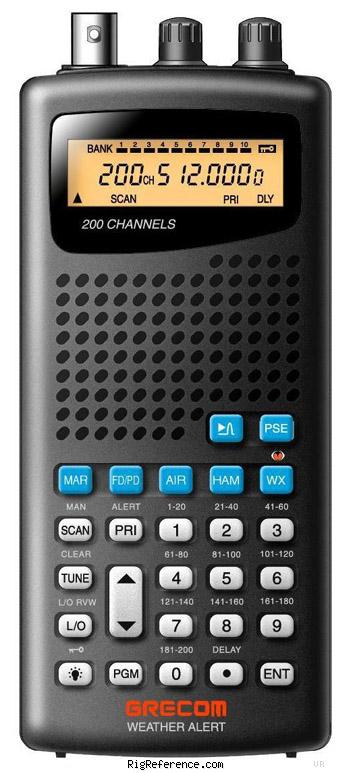

GRE / GRECOM PSR-100

Handheld VHF/UHF Scanner / receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

Find GRE / GRECOM PSR-100 rigs and spare parts on eBay Find the GRE / GRECOM PSR-100 on Amazon
We receive a small fee when you buy through these links, thank you!

Frequency range

RX-range
29-54 / 108-174 / 380-512 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
5 / 12.5 kHz
Filters
?

Receiver

Modulations
AM   FM
Sensitivity
29-54 MHz: 0.5 µV ((S+N)/N 20 dB)
108-137 MHz: 1.0 µV ((S+N)/N 20 dB)
137-174 MHz: 0.5 µV ((S+N)/N 20 dB)
380-512 MHz: 0.7 µV ((S+N)/N 20 dB)
Selectivity
+/-8 kHz (-6 dB), +/-17 kHz (-50 dB)
Receiver system
Double conversion superheterodyne
IF-frequencies
1st: 10.7 MHz
2nd: 455 KHz
Image rejection
50 dB
Audio output
?

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
BNC
Impedance
50Ω

Electrical

Power requirements
4.8-6V DC (4R6/AA) or 9V DC external
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
63 × 145 × 40 mm (2.48 × 5.71 × 1.57 in)
Weight
220 gr (7.8 oz)
Form factor
Handheld
Manufactured
Between 200x and 200x
MPN
GRE-/-GRECOM-PSR-000100

Other features

Memories
200 channels in 10 bank(s)
Usage
Amateur / Ham radio operators
Features + options
Weather alert/SAME/FIPS/Skywarn Spectrum sweeper. PC programmable
