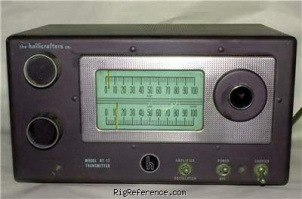

Crystal controlled CW transmitter covering 80 to 10 meters. RF-output 25 watts max., on the higher bands the output drops off somewhat and makes 12 watts on 10 meters. Unit comes with a pilot-lamp type tuning indicator and a set of 40 meter coils. The tuning indicator light could be replaced by the optional tuning meter model SM-17. Additional coil-sets were priced at USD 7,50

New price 1947 in the US: $69.50

Frequency range

RX-range
-
TX-range
10, 15, 20, 40 & 80 m
HAM bands
80m  40m  20m  15m  10m
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
-
Sensitivity
?
Selectivity
?
Receiver system
?
IF-frequencies
?
Image rejection
?
Audio output
?

Transmitter

Modulations
CW
RF-Output
10-20 m: 10 W, 40-80 m: 15 W

Connections

Antenna
Clamps / screws
Impedance
?

Electrical

Power requirements
Mains (105-125 V AC)
Current drain RX
-
TX
?

Physical

Dimensions (w×h×d)
328 × 188 × 218 mm (12.91 × 7.40 × 8.58 in)
Weight
9.50 kg (21.0 lbs)
Form factor
Unknown
Manufactured
Between 1947 and 194x in USA
MPN
HALLICRAFTERS-HT-000017

Other features

Memories
None
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Hallicrafters HT-17 user manuals on eBay #ad

Reviews & stories

HT-17 My First Rig

Hallicrafters HT-17, HF Transmitter

I had an HT-17 on loan from another ham. It was my first transmitter. My receiver was a Knight Kit Ocean Hopper. The HT-17 was easy to tune and gave me much
happiness. It as later replaced by the Johnson Viking Adventurer transmitter and my new receiver was the Hallicrafters S-40A.

Overall

Performance
Build quality
Features
User friendlyness
Value for money
Aquired
Mint condition in 1962

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of new a used Hallicrafters HT-17. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Hallicrafters HT-17 is around:

  • USD 0.00
Year Historic price Condition Submitted by
1947 USD 69.50 New / Mint RigReference
