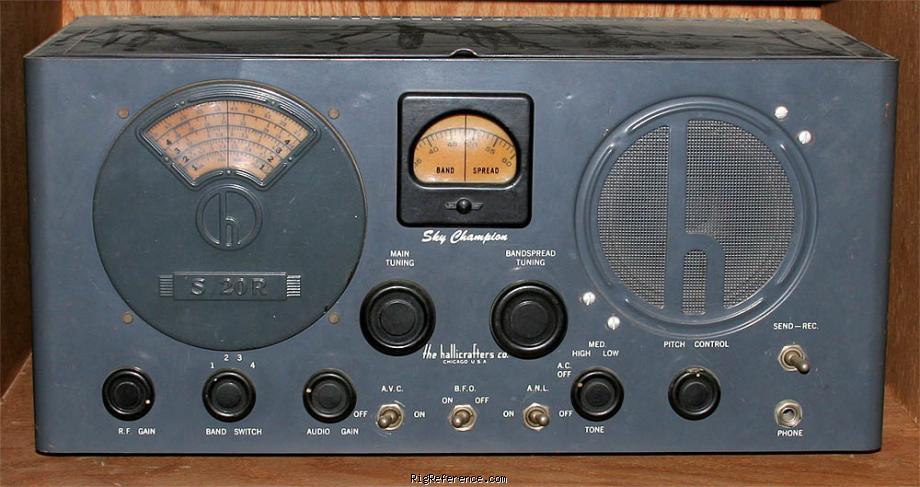

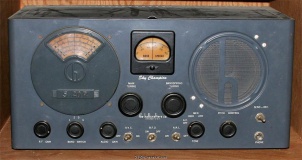

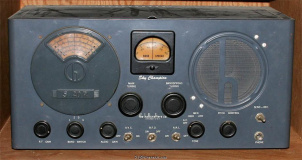

Hallicrafters S-20R Sky Champion

Desktop HF/VHF Receiver

View all reviews (0) Add a review Add to my shack



Login or Register to upload images

The S-20R replaced the Hallicrafters S-20 Sky Champion. It added electrical bandspread and other improvements.

Frequency range

RX-range
0.55-44 MHz
TX-range
-
HAM bands
?
Stability
?
Tuning steps
?
Filters
?

Receiver

Modulations
AM   CW
Sensitivity
?
Selectivity
?
Receiver system
Single-conversion superheterodyne, 9 tubes
IF-frequencies
455 KHz
Image rejection
?
Audio output
?

Transmitter

Modulations
-
RF-Output
?

Connections

Antenna
-
Impedance
450 Ω

Electrical

Power requirements
Mains 110-120 V AC (110-250 V AC option)
Current drain RX
?
TX
-

Physical

Dimensions (w×h×d)
470 × 216 × 238 mm (18.50 × 8.50 × 9.37 in)
Weight
14.50 kg (32.0 lbs)
Form factor
Base Station
Manufactured
Between 1939 and 1945 in USA
MPN
HALLICRAFTERS-S-000020R-SKY-CHAMPION

Other features

Memories
?
Usage
Amateur / Ham radio operators
Features + options
?
Accessories
?

Manuals, diagrams and brochures

No documents available for this particular model.

Upload relevant documents

Show other documents.
Find the Hallicrafters S-20R Sky Champion user manuals on eBay

Reviews & stories

Do you know this rig? Tell us something about it!

New and second-hand prices

Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used Hallicrafters S-20R Sky Champion. Just bought or sold this model? Let us know what you traded it for and help other ham operators!

Based on historic data, today's second-hand price of the Hallicrafters S-20R Sky Champion is around:

  • USD 20.00
Year Historic price Condition Submitted by
2013 USD 25.00 Used / Fair Larry G.
