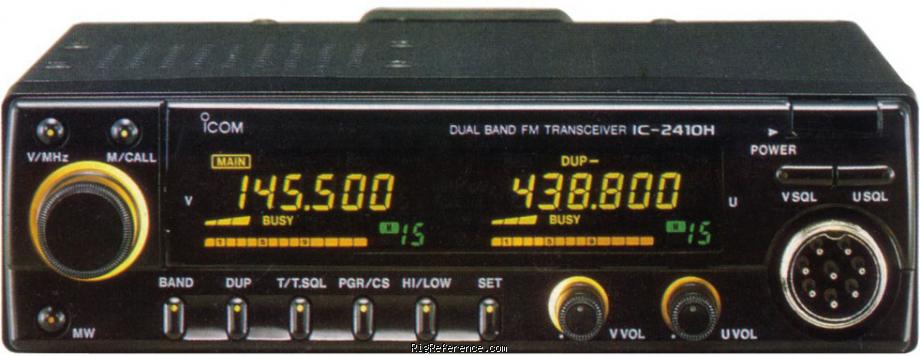

The Icom IC-2410H dual band mobile FM transceiver boasts 45 watts output on 2 meters and 35 watts on 440 MHz. This rig features a large dual-band LCD display and simultaneous dual-band receive. And unlike the previous ICOM IC-2400A, it adds simultaneous receive on the same band. The controls are easy to use. Receive range is 138-174, 440-450 MHz. It features 36 memories. Other enhancements include independent volume and squelch setting switches, 20 dB RF attenuator, illuminated switches, scanning, selectable LCD intensity, auto-dialing, and optional voice synthesizer. There is even a built-in antenna duplexer for easy dual band antenna connection, so there is just one SO-239 on the rear panel.
General characteristics
- HAM bands
- 2m 70cm
- Frequency stability
- ?
- Tuning steps
- ?
- Memories
- 36 channels in 1 bank(s)
Receiver
- RX-range
- 118-174 MHz / 320-479 MHz
- Modulations
- AM FM
- Sensitivity
- ?
- Selectivity
- ?
- Filters
- ?
- Receiver system
- Double conversion superheterodyne
- IF-frequencies
- ?
- Image rejection
- ?
- Audio output
- Internal speaker
Transmitter
- TX-range
- 144-146 / 430-440 MHz (Europe)
144-148 / 440-450 MHz (USA) - Modulations
- FM
- RF-output
- High: 45/35 W, Medium: 10/10 W, Low: 5/5 W
Connections
- Antenna
- SO-239
- Impedance
- 50Ω
- Other
- -
Electrical
- Power requirements
- 13.8V DC
- Current drain RX
- ?
- TX
- Max 10.5 A
Physical
- Dimensions (w×h×d)
- 140 × 40 × 175 mm (5.51 × 1.57 × 6.89 in)
- Weight
- 1.35 kg (3.0 lbs)
- Form factor
- Mobile
- Manufactured
- Between 1991 and 19xx in Japan
Other features
- Usage
- Amateur / Ham radio operators
- Features + options
- Twin RX
Dual Band Receive
CTCSS Tone Encode
Sub Band Mute
Two Call Channels
Dimmer
Priority Watch
Auto Repeater Function
Scan Functions
Remote Hand Mic - Accessories
- -
- RigReference ID
- 3009
- MPN
- ICOM-IC-002410H
Manuals, diagrams and brochures
- ICOM IC-2410A/E/H Instruction Manual.pdf PDF - Unknown size, submitted by RigReference
- Upload relevant documents
New and second-hand prices
Estimating the value of a rig can be challenging. We collect prices paid by real hams over the years to help you estimate the value of a used ICOM IC-2410H. Just bought or sold this model? Let us know what you traded it for and help other ham operators!
Based on historic price data, today's estimated value of the ICOM IC-2410H in Good condition is around:
- USD 15
These estimates are based on the following prices:
